Structural Dust Cover - Installation

INSTALLATION





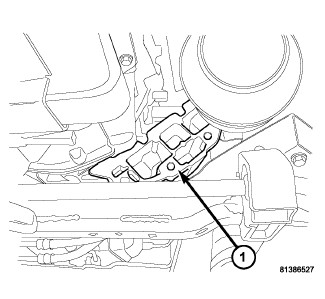

1. Install structural collar (1) from the right rear.






CAUTION: The structural collar must be tightened using this service procedure, or damage to transmission case and/or oil pan may occur.

2. Position structural collar (3) in place.
3. Finger tighten all bolts (2),(4).

NOTE: Make sure that structural collar (3) is flush with the oil pan (1) and the transmission bell housing.

4. Install the vertical collar bolts (2) to oil pan, pre-torque bolts to 1.1 Nm ( 10 in. lbs.).
5. Install the horizontal collar bolts (4) to transmission and tighten to 55 Nm ( 40 ft. lbs.).
6. Starting with the center vertical bolts and working outward, final torque all bolts to 55 Nm ( 40 ft. lbs.).





7. Install lower splash shield (2) and retaining bolts (1).
8. Lower vehicle.





9. Connect negative battery (1) cable.
