Headlamp Unit - Installation

INSTALLATION






NOTE: If the headlamp leveling module (HID translator module) or sensors are replaced, the system needs to be calibrated using a Scan Tool.

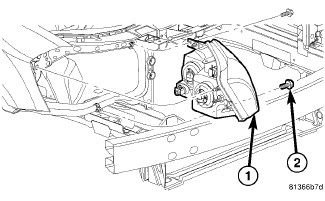

1. Position the headlamp unit in the opening in the headlamp mounting cross-member.
2. Connect the electrical connector.





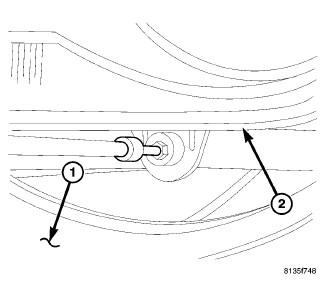

3. Install the one lower headlamp unit retaining screw.

NOTE: If the fascia was loosened, reattach it Front Bumper Fascia - Installation .

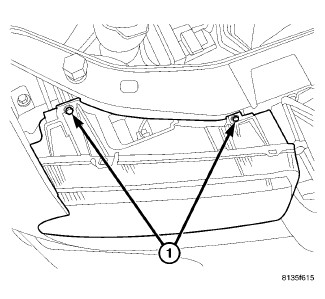

4. Install the two upper retaining screws (1).
5. Connect the battery negative cable.
6. Using a Scan Tool, calibrate the headlamp levelling system.

INSTALLATION - CHARGER





NOTE: If the headlamp leveling module (HID translator module) or sensors are replaced, the system needs to be calibrated using a Scan Tool.

1. Position the headlamp unit in the opening in the headlamp mounting cross-member.
2. Connect the electrical connector.





3. Install the one lower headlamp unit retaining screw.





4. Install the two upper retaining screws (1).

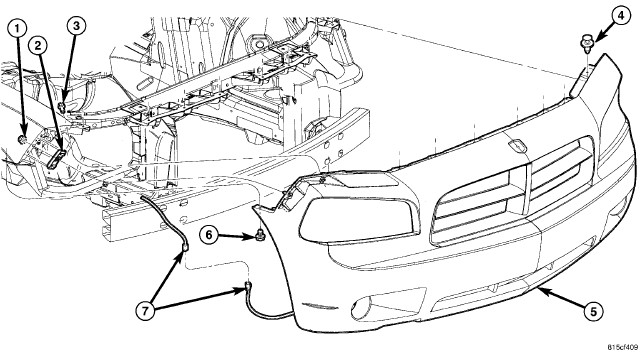

5. Install front fascia Front Bumper Fascia - Installation.
6. Connect the battery negative cable.
7. Using a Scan Tool, calibrate the headlamp levelling system.
