Horn - Installation






INSTALLATION






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

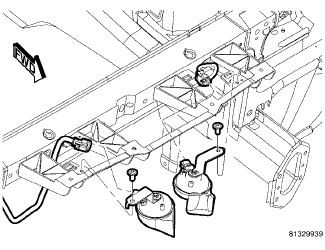

1. Position horn. Install and tighten mounting fasteners.
2. Connect electrical harness connector.
3. Install cover above horn.
4. Connect battery negative cable.
