Air Cleaner Body - Removal

REMOVAL










1. Disconnect negative battery cable.

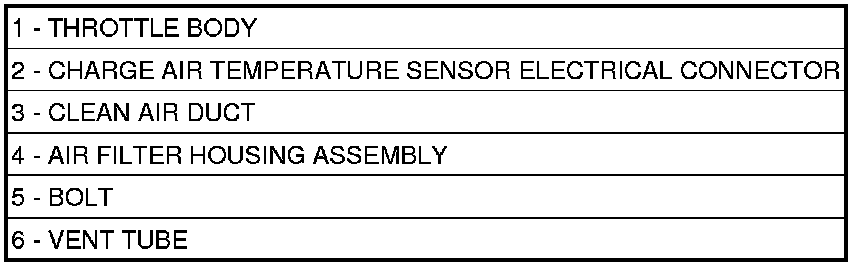

2. DIsconnect the charge air temperature sensor electrical connector (2).
3. Disconnect the clean air duct between throttle body and air filter housing (3).
4. Disconnect the makeup air (MUA) tube.
5. Remove mounting bolt (5).
6. Remove air filter housing (4).
7. Raise vehicle.
8. Partially remove front fascia to gain access to air filter resonator Front Bumper Fascia - Removal.
9. Remove mounting bolt.
10. Remove air cleaner resonator.
