Hood Sensor/Switch (For Alarm): Diagrams

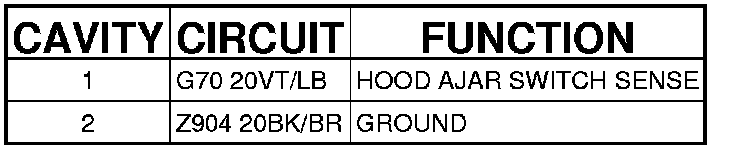

Connector - (HEADLAMP AND DASH) 2 WAY

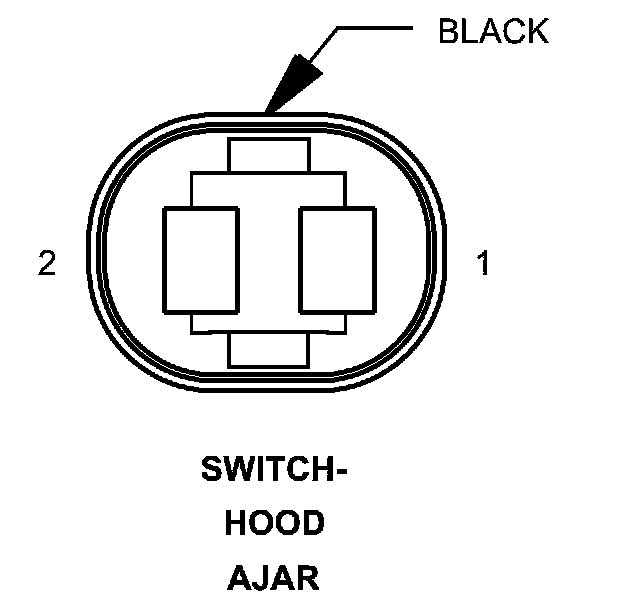

SWITCH-HOOD AJAR - (HEADLAMP AND DASH) 2 WAY
