Power Window Switch
>>
Diagrams
>>
Left Rear Power Window Switch (Rear Door) 6 Way
Left Rear Power Window Switch (Rear Door) 6 Way

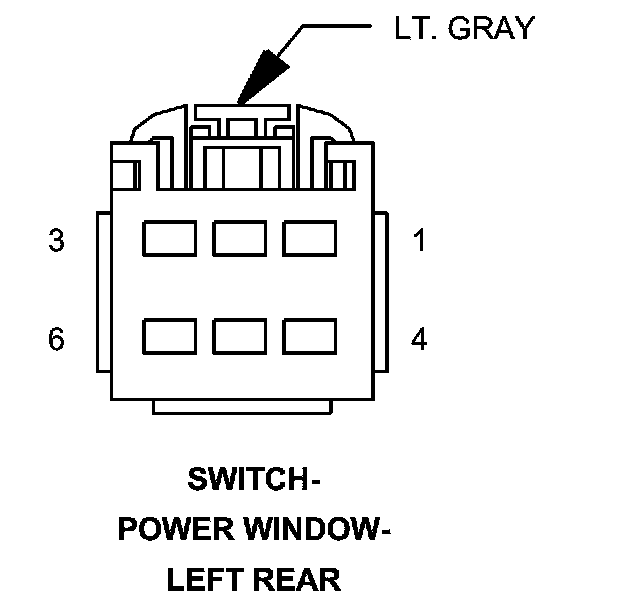

Connector - (REAR DOOR) 6 WAY

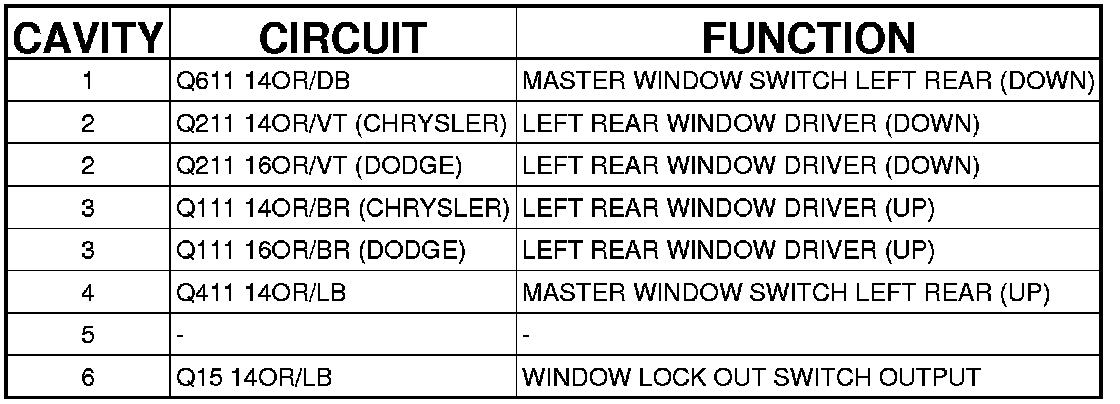

SWITCH-POWER WINDOW-LEFT REAR - (REAR DOOR) 6 WAY
