Home >> Dodge and Ram >> 2009 >> Charger V6-2.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Integrated Power Module (IPM)

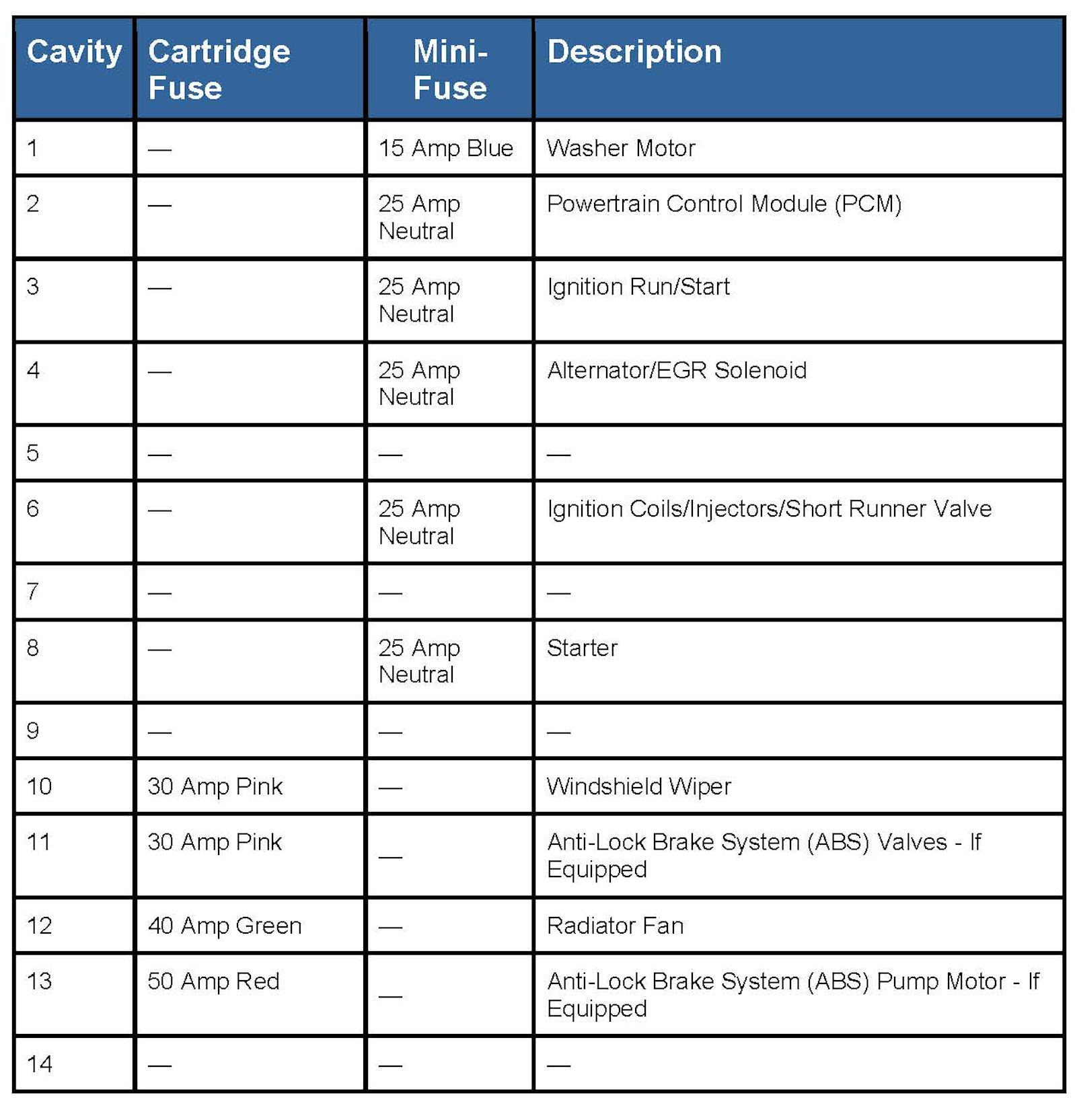

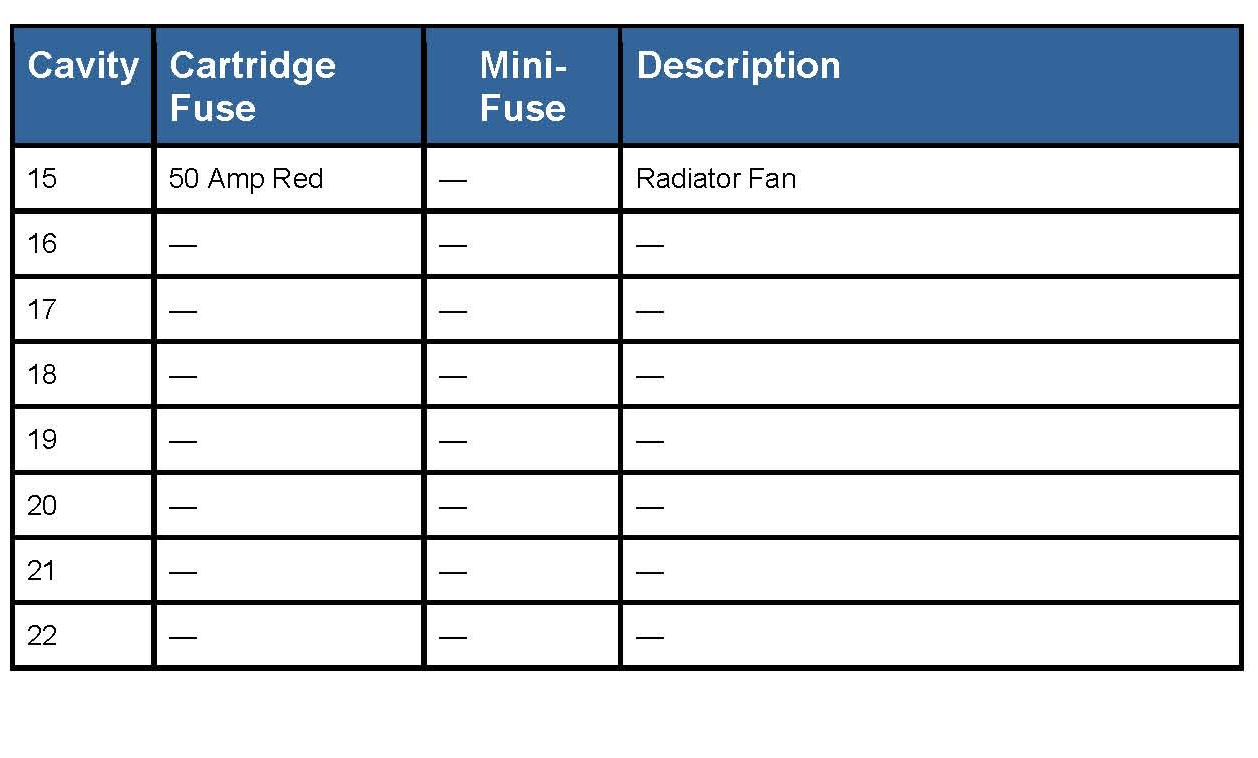

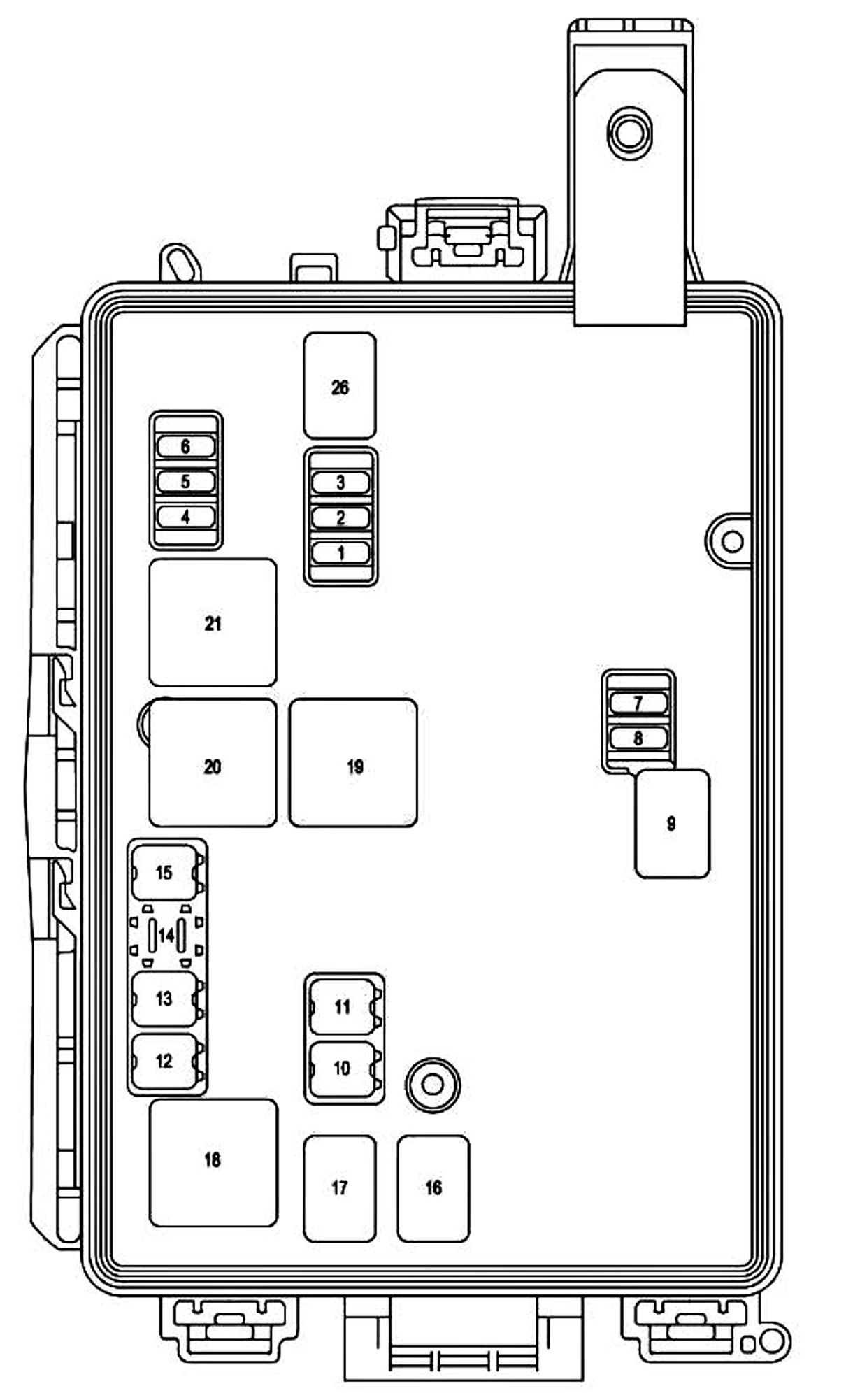

Integrated Power Module (IPM)
