Installation

INSTALLATION

WARNING: The heater core tubes are not serviced separately from the heater core. The heater core tubes should not be repositioned, loosened or removed from the heater core. Failure to follow this warning may result in a coolant leak and possible serious or fatal injury.

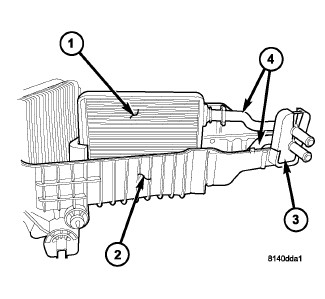

1. If removed, install the rubber flange (3) over the heater core tubes (4).

NOTE: Make sure that the foam seal and the rubber flange are properly positioned in the HVAC housing.

2. Carefully install the heater core (1) into the lower half of the HVAC housing (2).
3. Assemble the HVAC housing Assembly.

NOTE: If the heater core is being replaced, flush the cooling system Service and Repair .

4. Install the HVAC housing HVAC Housing - Installation.
