42RLE Automatic Transmission

42RLE AUTOMATIC TRANSMISSION

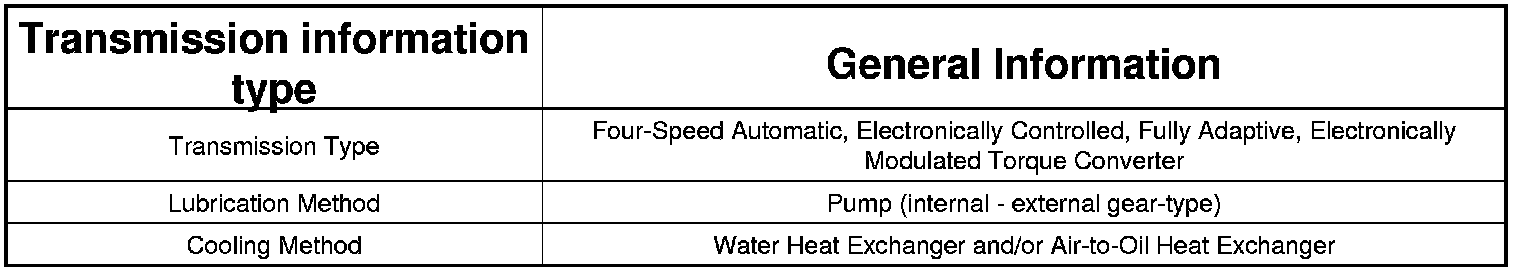

GENERAL SPECIFICATIONS

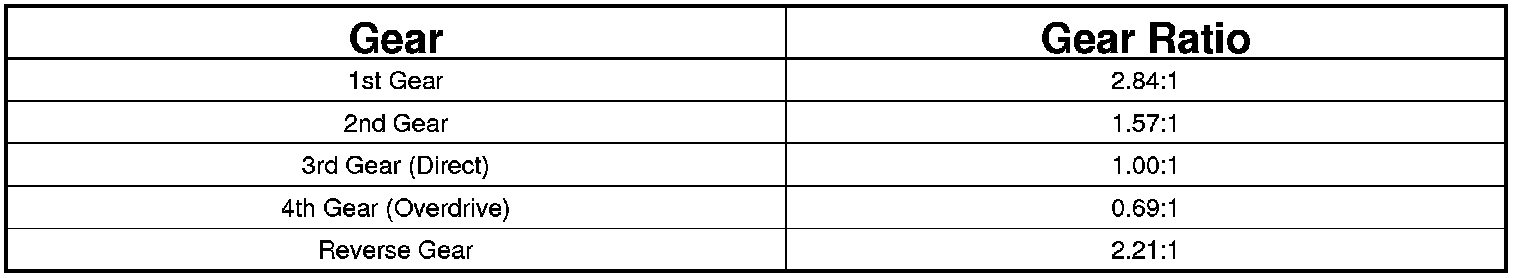

GEAR RATIOS

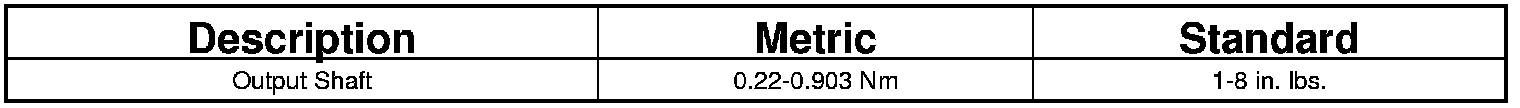

BEARING PRELOAD (Drag Torque)

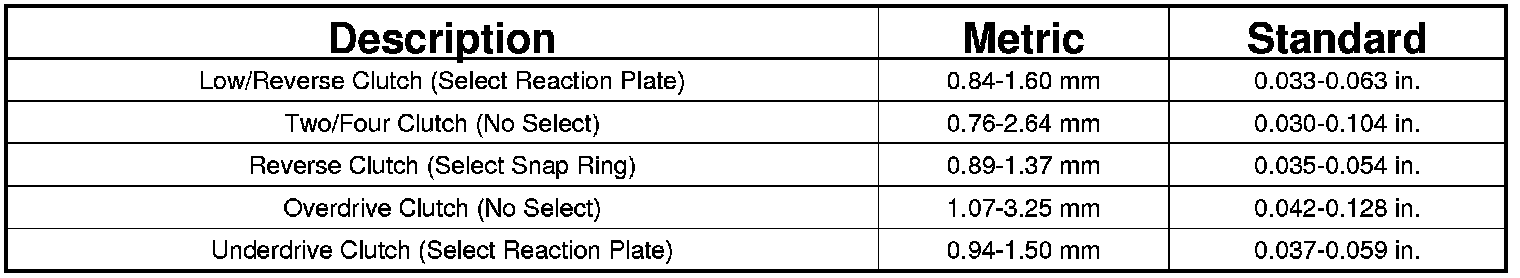

CLUTCH PACK

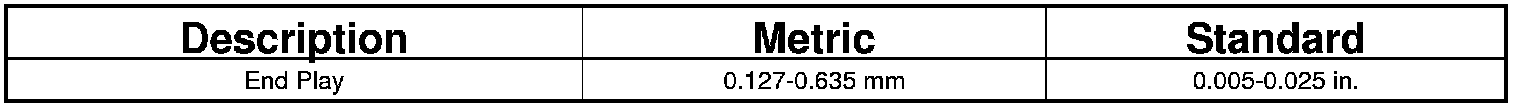

INPUT SHAFT

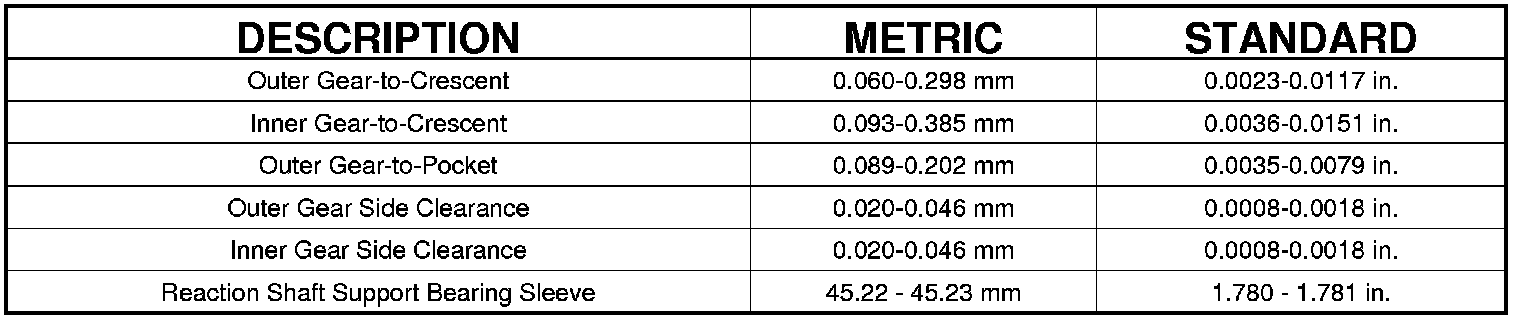

OIL PUMP CLEARANCES

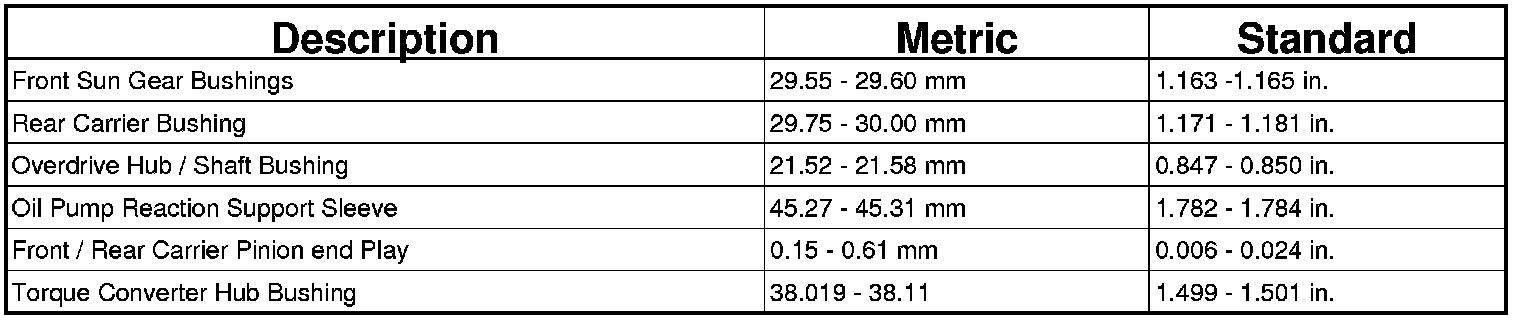

GEAR TRAIN MEASUREMENTS

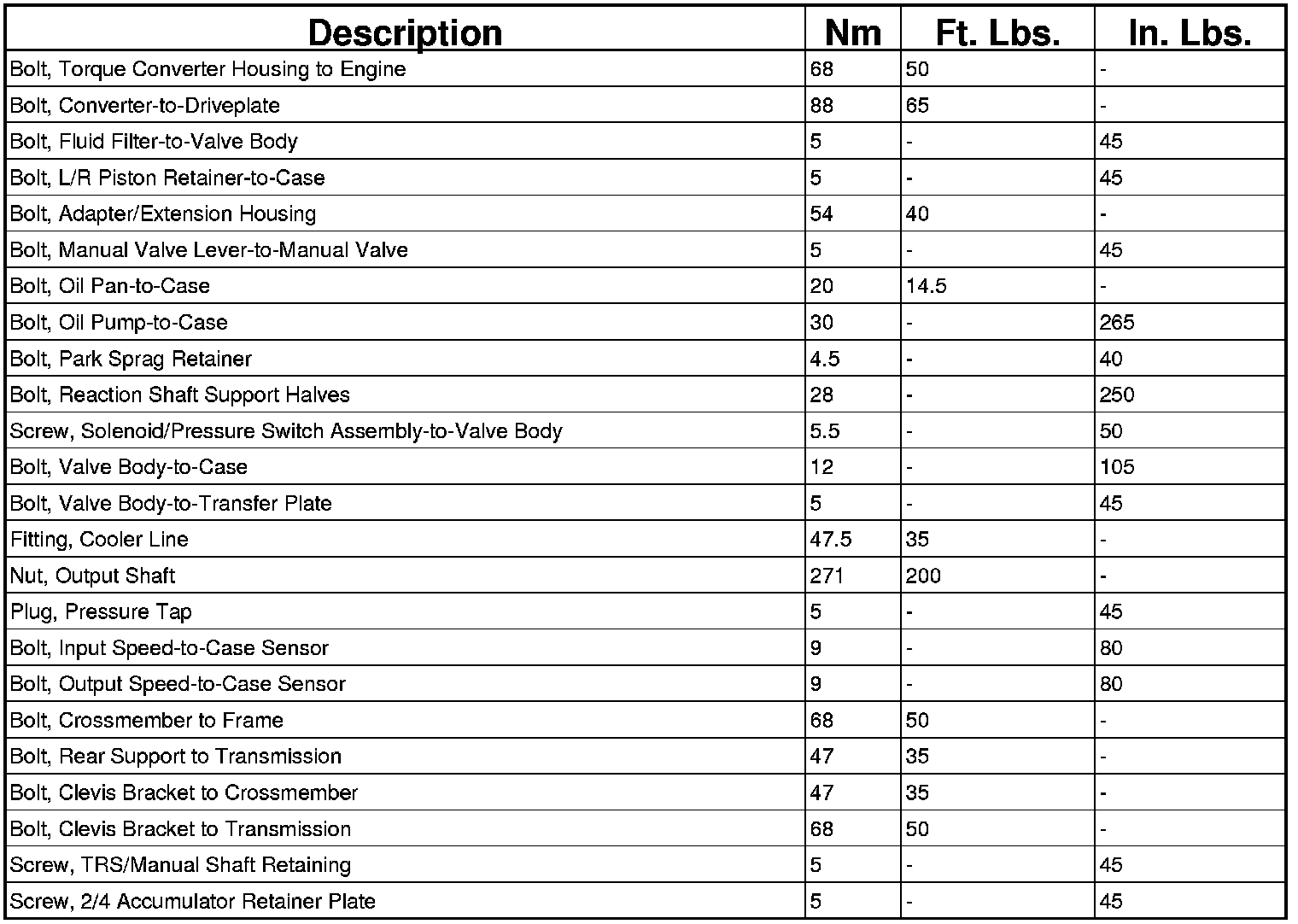

TORQUE SPECIFICATIONS






FLEX PLATE





Flexplate bolts 95 Nm (70 ft. lbs.)
