Starter - Installation

INSTALLATION

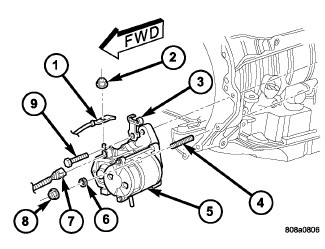

3.7L / 4.7L With Manual Trans.





1. Connect solenoid wire to starter motor (snaps on).
2. Position battery cable (1) to solenoid stud. Install and tighten battery cable eyelet nut (2) to 25 Nm (19 ft. lbs.). Do not allow starter motor to hang from wire harness.
3. Position starter motor (5) to transmission.
4. Install the lockwasher (6), nut (8) and bolt (9). Tighten the nut (8) to 68 Nm (50 ft. lbs.).
5. Lower vehicle.
6. Connect negative battery cable.

3.7L / 4.7L With Auto. Trans.





1. Connect solenoid wire to starter motor (snaps on).
2. Position battery cable (1) to solenoid stud. Install and tighten battery cable eyelet nut (2) to 25 Nm (19 ft. lbs.). Do not allow starter motor to hang from wire harness.
3. Position starter motor (4) to transmission.
4. If equipped with automatic transmission, slide cooler tube bracket into position.
5. Install and tighten both bolts (3) to 68 Nm (50 ft. lbs.).
6. Lower vehicle.
7. Connect negative battery cable.

5.7L V-8





1. Connect solenoid wire to starter motor (snaps on).
2. Position battery cable to solenoid stud. Install and tighten battery cable eyelet nut to 25 Nm (19 ft. lbs.). Do not allow starter motor to hang from wire harness.
3. Position starter motor (1) to engine.
4. If equipped with automatic transmission, slide cooler tube bracket into position.
5. Install and tighten both mounting bolts (2) to 68 Nm (50 ft. lbs.).
6. Lower vehicle.
7. Connect negative battery cable.
