Final Drive Control Module C1 (HEV) (Headlamp And Dash) 16 Way

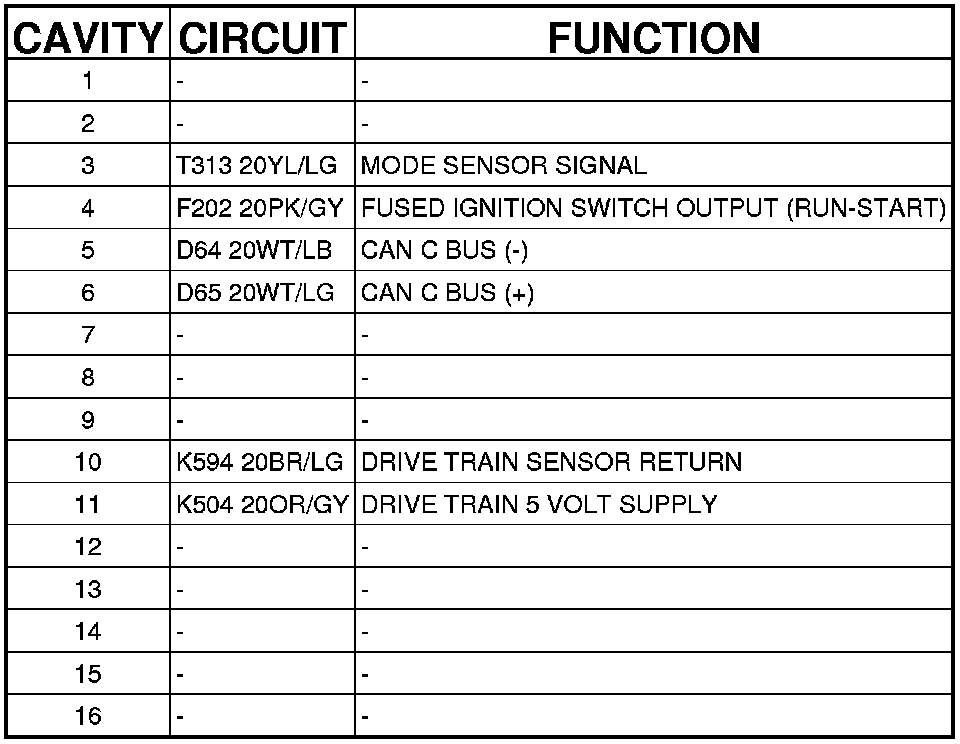

Connector C1 (HEV) - (HEADLAMP AND DASH) 16 WAY

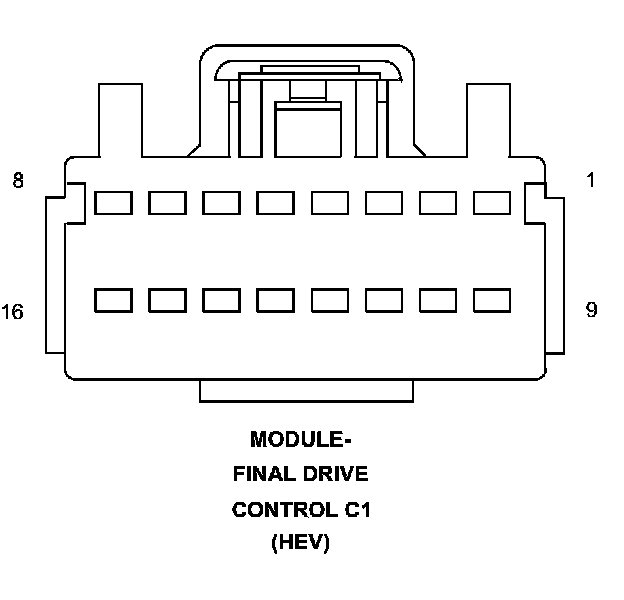

MODULE-FINAL DRIVE CONTROL (HEV) - (HEADLAMP AND DASH) 16 WAY
