Final Drive Control Module C2 (HEV) (Headlamp And Dash) 4 Way

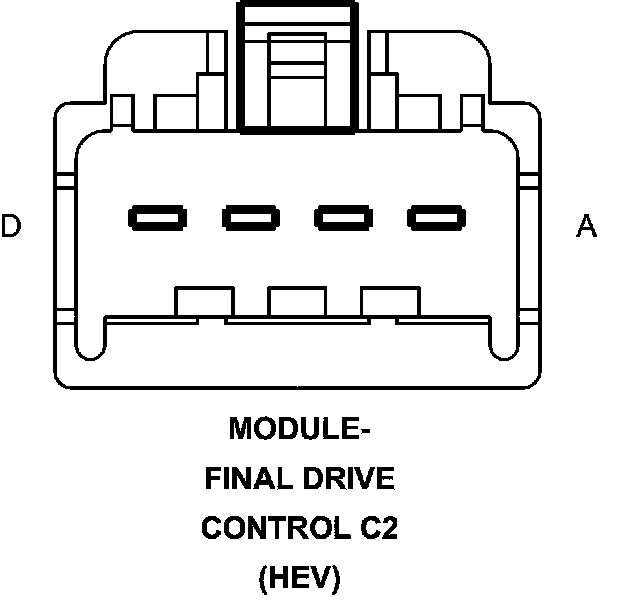

Connector C2 (HEV) - (HEADLAMP AND DASH) 4 WAY

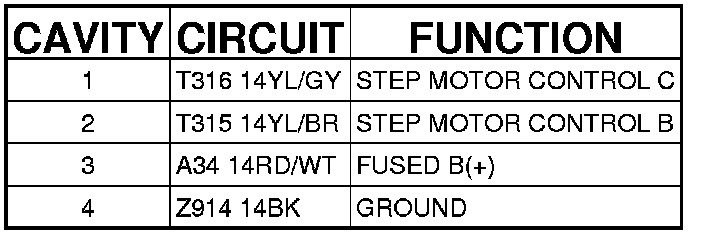

MODULE-FINAL DRIVE CONTROL (HEV) - (HEADLAMP AND DASH) 4 WAY
