EVT Automatic Transmission






TRANSMISSION

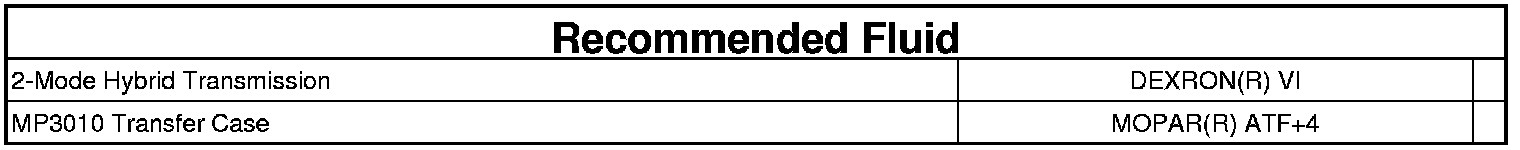

FLUID

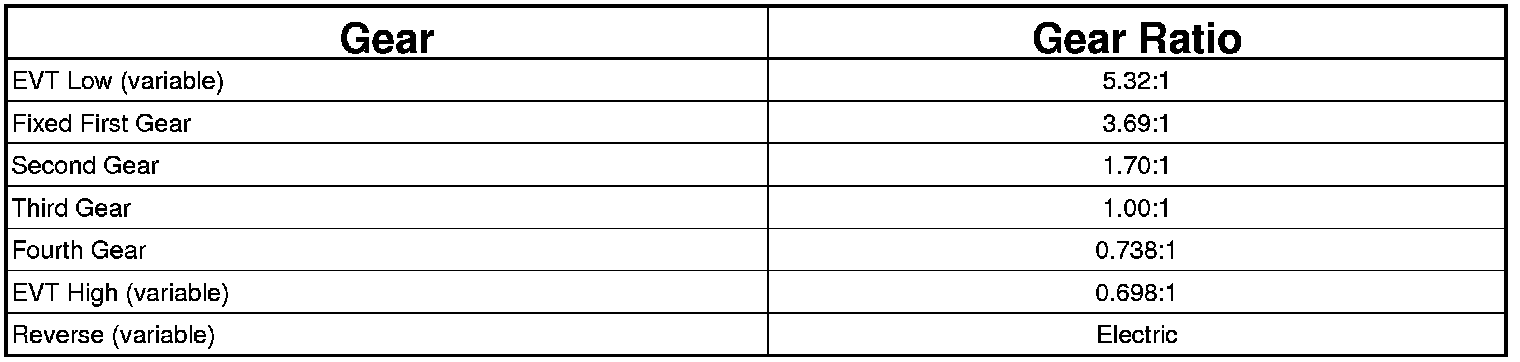

GEAR RATIOS






TORQUE SPECIFICATIONS






FLEX PLATE





Flexplate-to-crankshaft bolts 95 Nm (70 ft. lbs.)
