Rear Camera - Installation






INSTALLATION

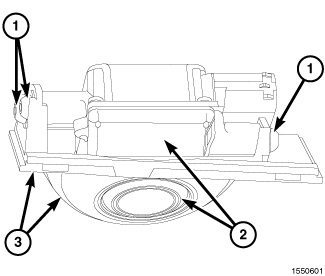

1. Position the Rear View Camera (RVC) (2) to the mounting bracket (3).

CAUTION: If a new RVC is being installed, lightly lubricate the threads of the three self-tapping screws (1) as an assembly aid for the screws cutting new threads in the RVC mounting bosses.

2. Install and tighten the three screws that secure the RVC to the mounting bracket. Tighten the screws securely.

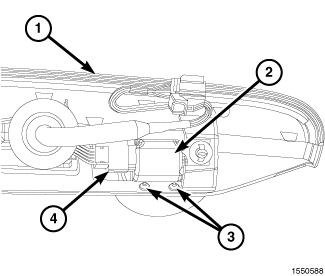

3. Position the RVC (2) and mounting bracket to the light bar assembly (1) as a unit.
4. Install and tighten the two screws (3) that secure the camera mounting bracket to the light bar. Tighten the screws securely.
5. Reconnect the light bar wire electrical connector (4) to the RVC.
6. Install the liftgate light bar. Exterior Handle - Installation.
7. Connect the battery negative cable.
