Liftgate Trim Panel - Installation

INSTALLATION

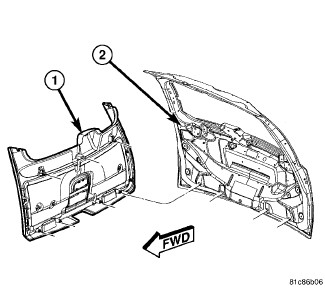

1. Position the lower liftgate trim panel (1) to the liftgate (2) and connect the wire connector to the liftgate lamp.
2. Install the lower liftgate trim panel onto the liftgate and engage the retaining clips. Make sure the retaining clips are fully engaged.

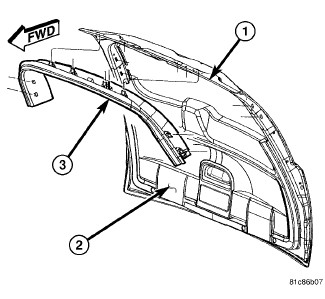

3. Position the upper liftgate trim panel (3) to the liftgate (1) and engage the retaining clips. Make sure the retaining clips are fully engaged.
4. If equipped, connect the power liftgate motor link rod to the liftgate pivot Power Liftgate Link Rod - Installation.
5. Reconnect the negative battery cable.
