Seat Riser - Installation

INSTALLATION

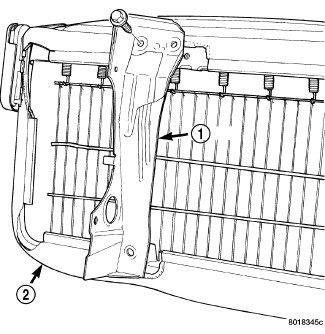

1. Position the riser (1) to the seat cushion frame (2) and install the retaining bolts. Tighten the bolts to 48 Nm (35 ft. lbs.).
2. Install the seat track Seat Track - Installation.
