Second Row

DESCRIPTION

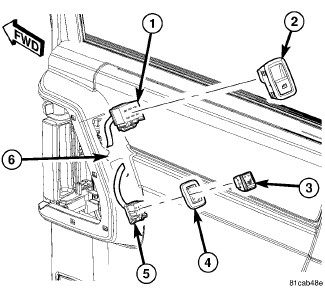

The heated seat switches (3) for the 2nd row seats are located in the sliding door trim panels (6) near the door handles. These switches allow the 2nd row seat passengers to select from two different levels of electrical seat heating (HI/LO). The two switches are snapped into switch bezels (4) and then snapped into mounting holes in the sliding door trim panels (6). Amber Light Emitting Diodes (LEDS) in the top portion of each switch indicate the level of heat in use: Two LEDs are illuminated for high, one for low, and none for off. Pressing the switch once will select high-level heating. Pressing the switch a second time will select low-level heating. Pressing the switch a third time will shut the heating elements off.

The two momentary, push button-type heated seat switches provide a hardwired resistance signal to the applicable Rear Door Module (left or right). The applicable Rear Door Module then sends a message via the Controller Area Network (CAN) data bus network to the ElectroMechanical Instrument Cluster (EMIC) (also known as the Cab Compartment Node/CCN). The instrument cluster then sends a message via the Local Interconnect Network (LIN) data bus to the heated seat module, signaling the module to energize the heating element for the selected seat. Light Emitting Diodes (LED) in each switch indicate the level of heat in use. The switch LEDs are controlled by the applicable Rear Door Module.

The two LED indicator lamps and the incandescent bulb in each heated seat switch cannot be repaired. If the indicator lamps or back lighting bulb are inoperative or damaged, the individual heated seat switch must be replaced.
