Memory Seat Module C5 (Adjustable Pedals) (Front Seat) 6 Way

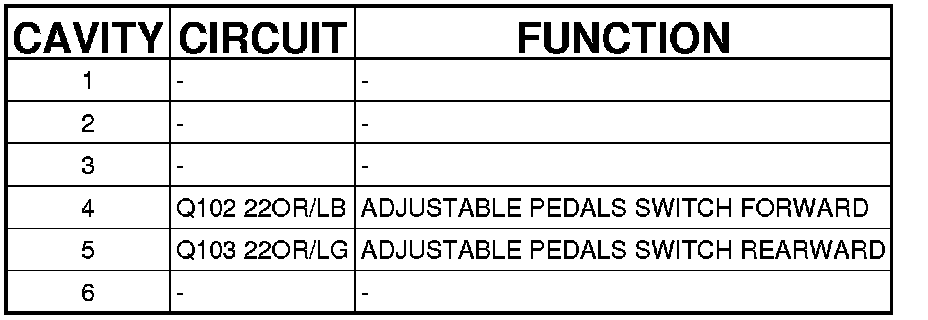

Connector C5 (ADJUSTABLE PEDALS) - (FRONT SEAT) 6 WAY

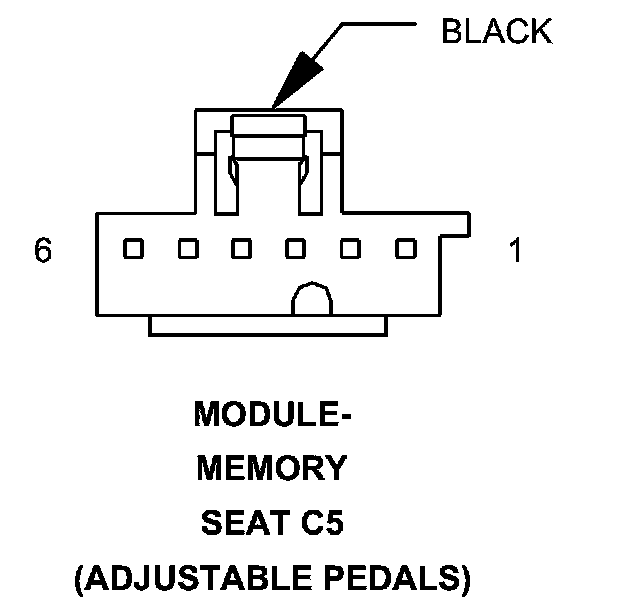

MODULE-MEMORY SEAT (ADJUSTABLE PEDALS) - (FRONT SEAT) 6 WAY
