Left Power Sliding Door Module (Left Power Sliding Door) (Left PSD Drive Unit) 6 Way

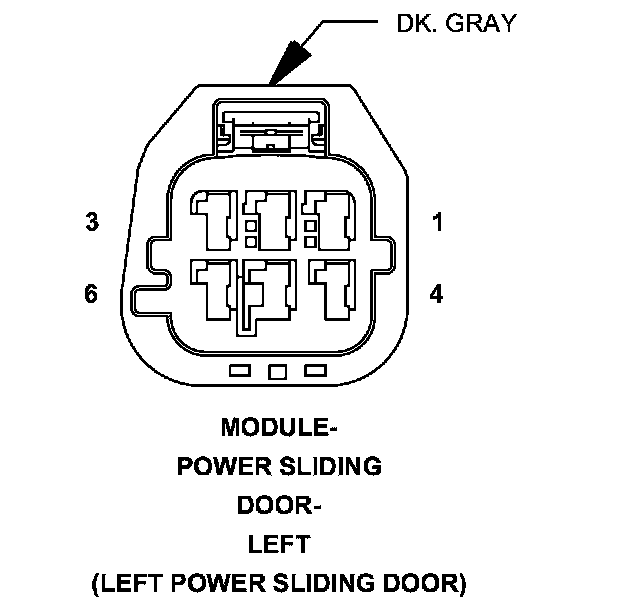

Connector (LEFT POWER SLIDING DOOR) - (LEFT PSD DRIVE UNIT) 6 WAY

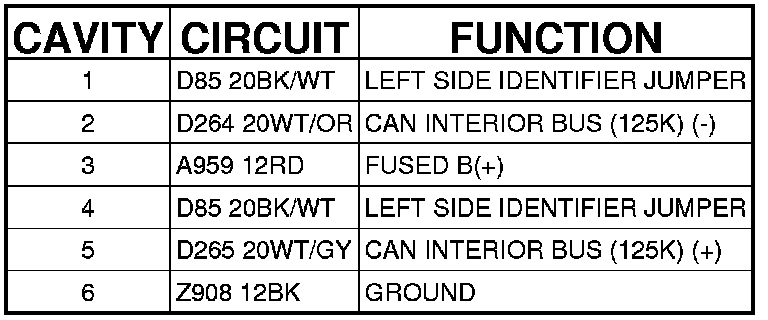

MODULE-POWER SLIDING DOOR-LEFT (LEFT POWER SLIDING DOOR) - (LEFT PSD DRIVE UNIT) 6 WAY
