Passenger Window/Door Lock Switch (Except Base) (Passenger Door) 10 Way

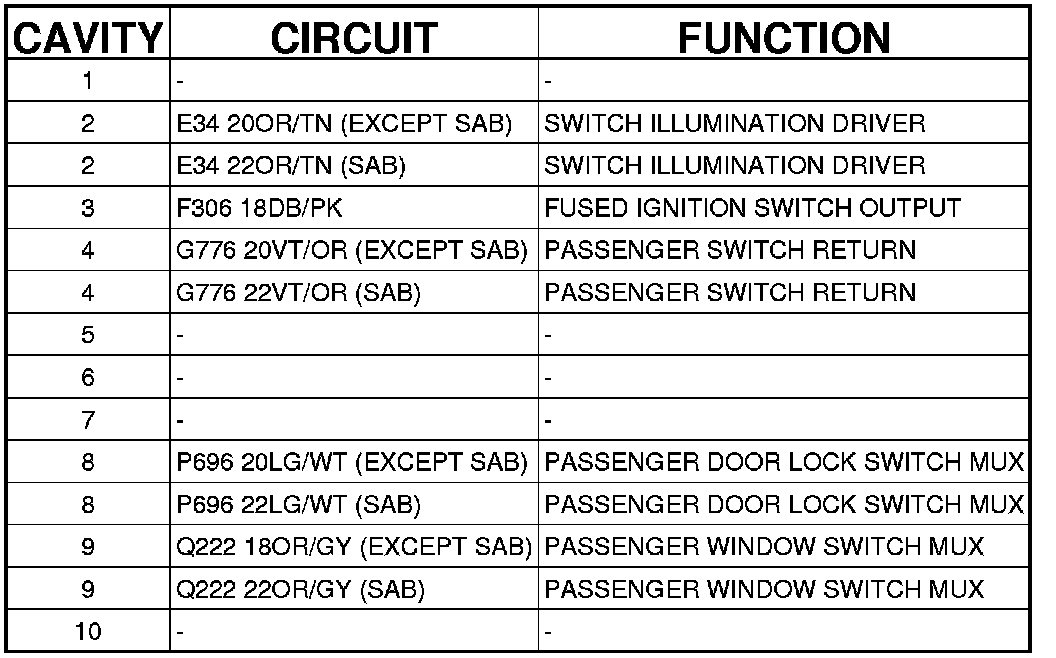

Connector (EXCEPT BASE) - (PASSENGER DOOR) 10 WAY

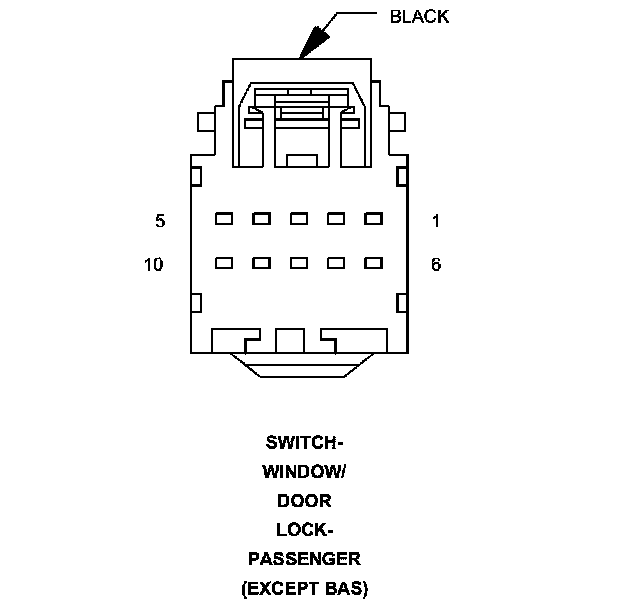

SWITCH-WINDOW/DOOR LOCK-PASSENGER (EXCEPT BASE) - (PASSENGER DOOR) 10 WAY
