Video Screen Module 1 C4 (Body Left/Console) 10 Way
Video Screen Module 1 C4 (Body Left/Console) 10 Way

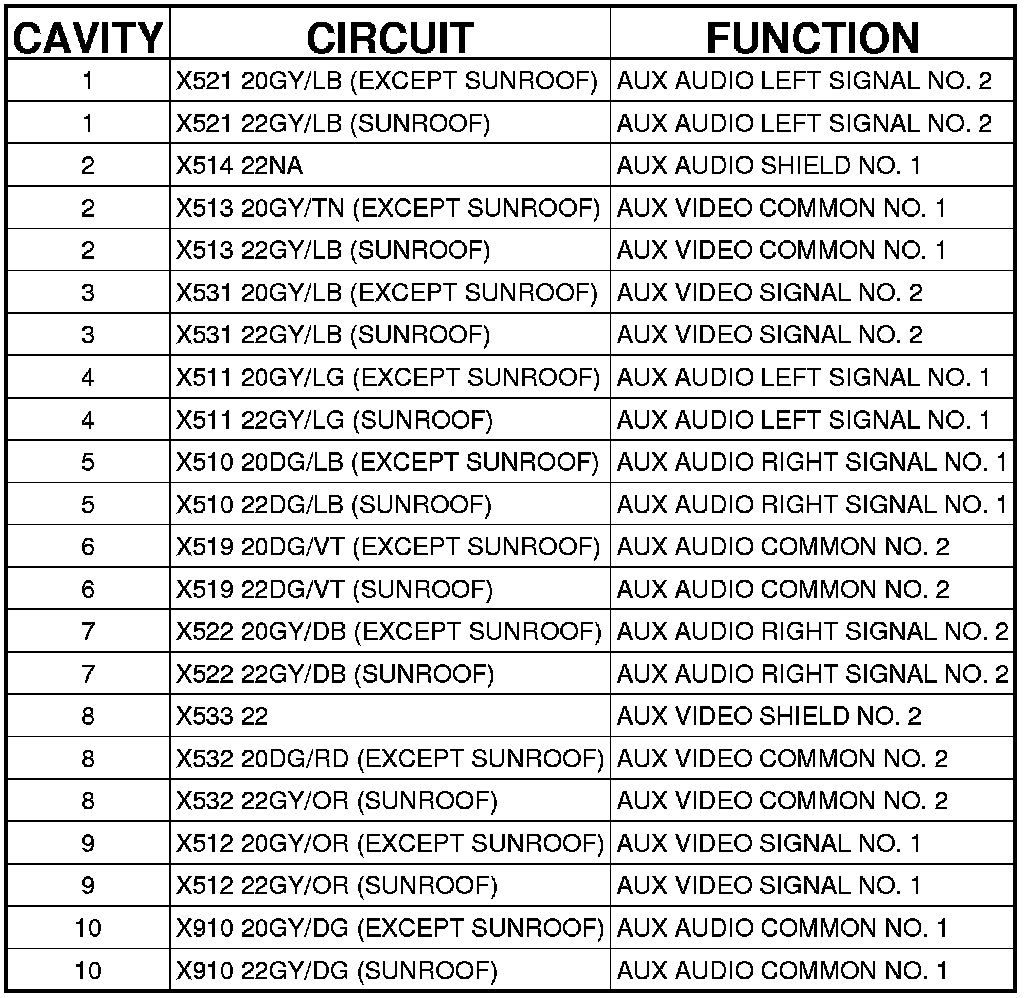

Connector C4 - (BODY LEFT/CONSOLE) 10 WAY

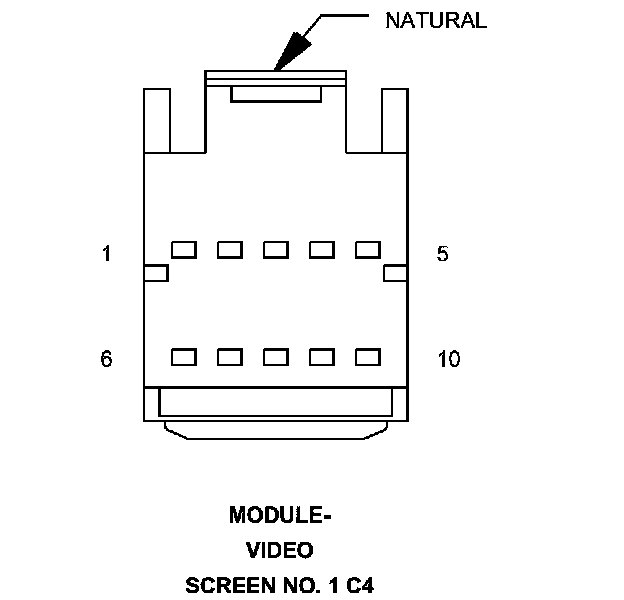

MODULE-VIDEO SCREEN 1 - (BODY LEFT/CONSOLE) 10 WAY
