Radiator Cooling Fan Control Module: Diagrams

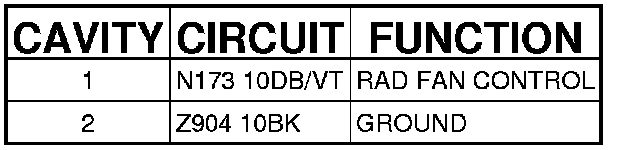

Connector - (FRONT END LIGHTING) 2 WAY

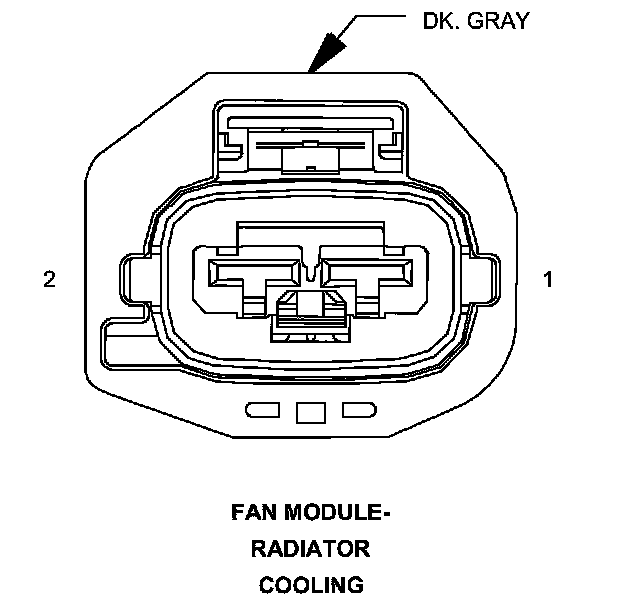

FAN MODULE-RADIATOR COOLING - (FRONT END LIGHTING) 2 WAY
