Part 1
INSTALLATION
1. Position Power Train Dolly 6135 and Engine Support Cradle 6710A under the engine.
2. Align the front right engine cradle post (2) with the lift point hole in the engine block.
3. Align the front left engine cradle post and Engine Support Bracket 8130 (1) with the lift point hole in the engine block.

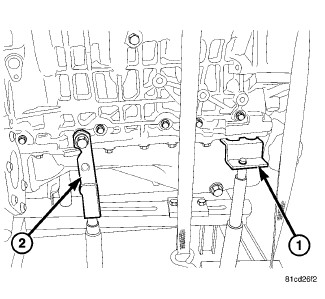

4. Install Power Train Dolly Adapter 10107-1 (2) to the engine block, and align the left rear engine cradle post with the hole in the adapter.
5. Install Power Train Dolly Adapter 10107-2 (1) to the engine block, and align the right rear engine cradle post with the hole in the support bracket.
6. Install safety straps so that they securely hold the engine assembly in the engine cradle. Tighten the fasteners at the base of each engine cradle post, and verify that the engine cradle posts are engaged in the lifting points.
7. Install the transaxle to the engine assembly, and install the upper transaxle bolts. Tighten to 95 Nm (70 ft. lbs.)
8. Position the powertrain assembly below vehicle body, and carefully lower the vehicle body onto the powertrain assembly.

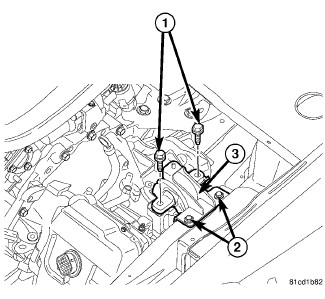

9. Install the left side transaxle mount bolts (1). Tighten transaxle mount bolts to 100 Nm (74 ft. lbs.).
10. Install the right engine mount-to-engine fasteners (1). Tighten to 100 Nm (74 ft. lbs.).
11. Remove safety straps and lift vehicle and engine off of engine support cradle.
12. Remove Support Bracket 8130, Power Train Dolly Adapters 10107-1 (2) and 10107-2 (1) from engine.

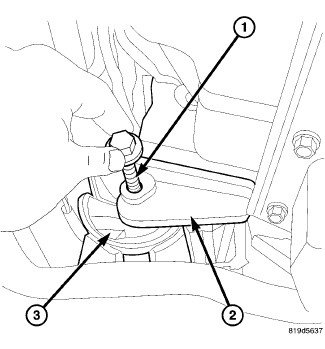

13. Install the rear transaxle mount through bolt (3). Tighten to 54 Nm (40 ft. lbs.).

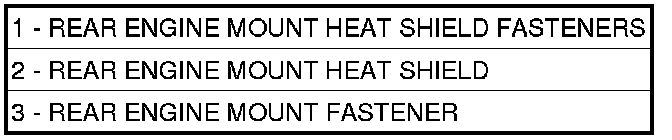

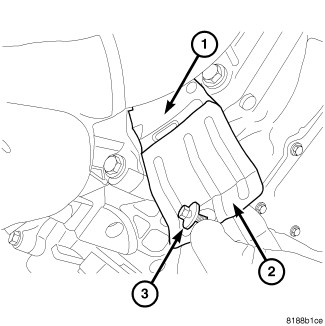

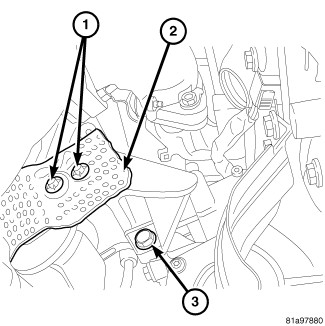

14. Install the rear Engine Mount Heat Shield (2), and the fasteners (1). Tighten fasteners to 11 Nm (100 in. lbs.).

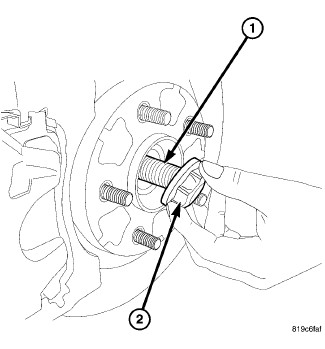

15. Install the right and left axle halfshafts Half Shaft - Installation.
16. Install the rear maniverter (2) Exhaust Manifold - Installation.

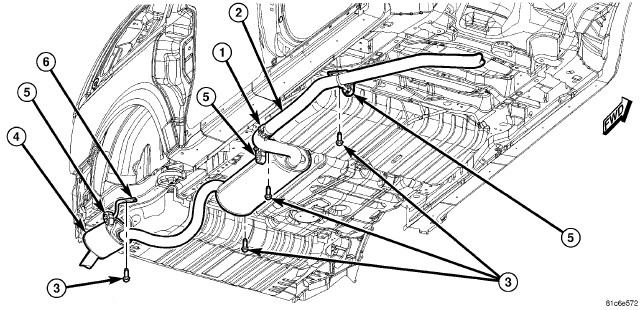

17. Install the front exhaust pipe (2) Installation

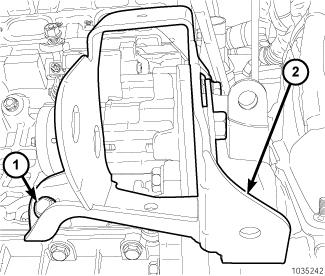

18. Install the front engine mount bracket (2).
19. If the driveplate has a tight-tolerance (slotted) bolt hole that was marked during removal, realign with the marked hole on the driveplate, then install the torque converter-to-driveplate bolts (1). Tighten the torque converter-to-driveplate bolts to 88 Nm (65 ft. lbs.)

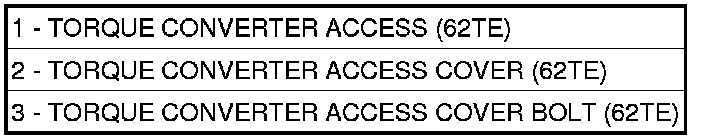

20. Install the torque converter access cover (2).

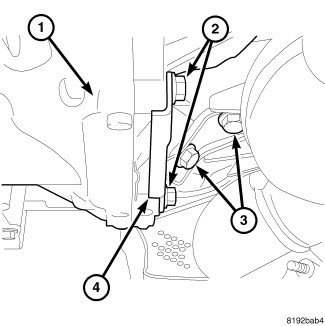

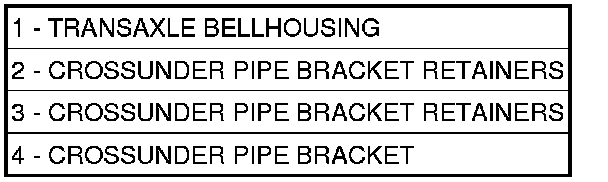

21. Install the crossunder pipe bracket (4). Tighten bolts (2) to 28 Nm (250 in. lbs.).
22. Install the remaining lower transaxle bellhousing bolts (2). Tighten to 28 Nm (250 in. lbs.).
23. Install the crossunder pipe Exhaust Manifold - Installation.

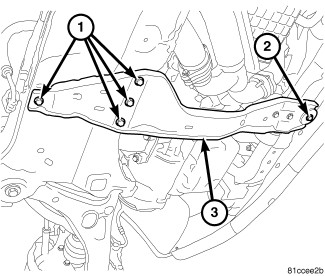

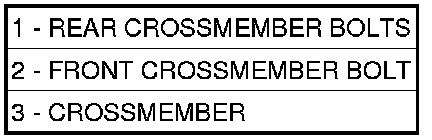

24. Install the crossmember (3), the four rear crossmember bolts (1), and the front crossmember bolt (2). Tighten the front crossmember bolt (2) to 108 Nm (80 ft. lbs.). Tighten the four rear crossmember bolts (1) to 55 Nm (40 ft. lbs.).
25. Install the front engine mount through bolt (1). Tighten to 54 Nm (40 ft. lbs.).

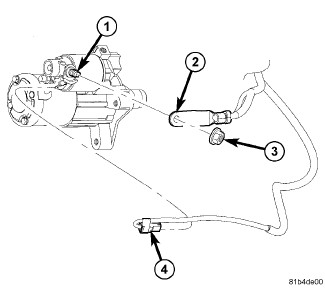

26. Install battery cable (2) and nut (3) to the starter solenoid stud (1). Tighten nut to 14.5 Nm (128 in. lbs.). Connect electrical connector (4) to starter solenoid.
27. Install front maniverter Exhaust Manifold - Installation

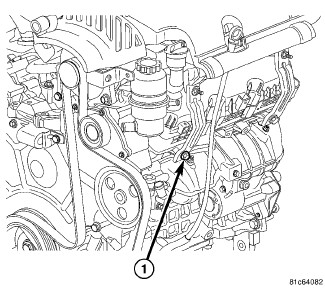

28. Install the oil dipstick tube, and install oil dipstick tube bolt (1).

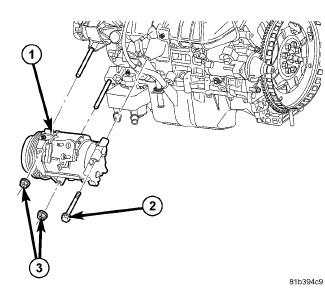

29. Position the A/C compressor onto the engine. Install and tighten the bolt (2) and nuts (3) in the following sequence:
- Install bolt and hand tighten.
- Install nuts and hand tighten.
- Tightened upper nut to 23 Nm (17 ft. lbs.).
- Tightened lower nut to 23 Nm (17 ft. lbs.).
- Tightened rear bolt to 23 Nm (17 ft. lbs.).
30. Reconnect the wire harness connector to the A/C compressor clutch coil.

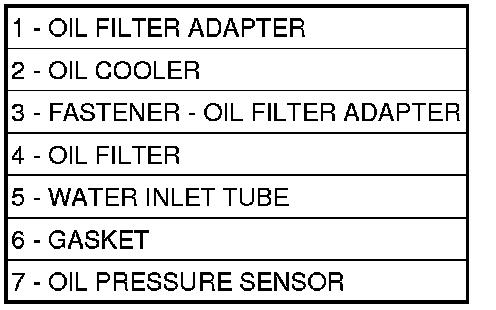

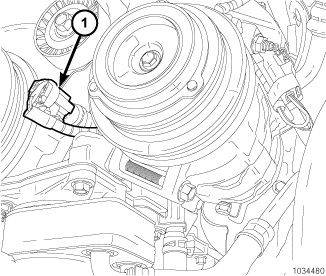

31. Reconnect the wire harness connector (1) to the oil pressure sensor.

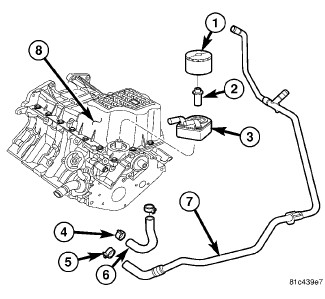

32. Reconnect the engine oil cooler line (7) to the engine oil cooler (3).

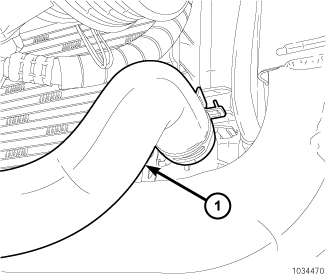

33. Install the lower radiator hose to the radiator.

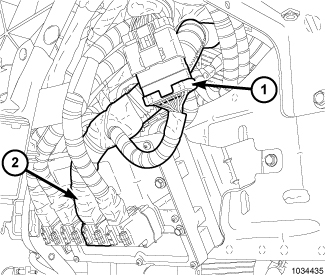

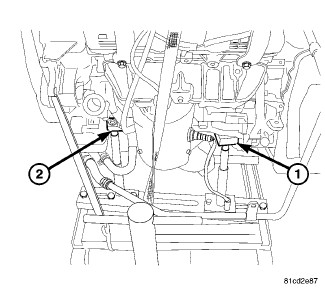

34. Reconnect the PCM harness connector (2) and the inline harness connector (1).
35. Install the transaxle ground strap and secure with the transaxle ground strap bolt (2).
