Front Map Door Lamp

REMOVAL

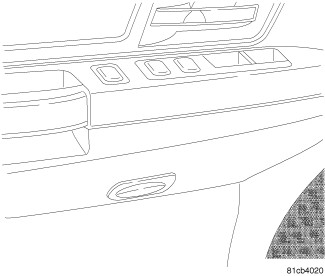

NOTE: Chrysler location shown, Dodge similar.


CHRYSLER





1. Disconnect battery negative

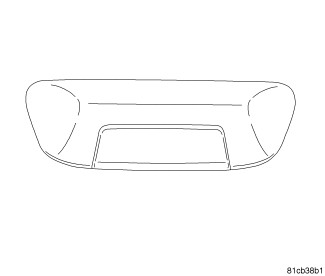

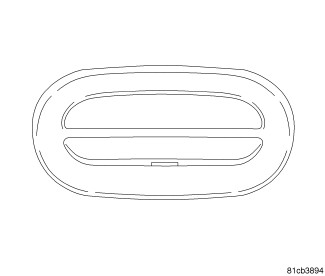

2. Using a trim stick or equivalent, gently pry LED door lamp from the door panel.
3. Disconnect the electrical connector and remove the LED lamp.

DODGE





1. Disconnect and isolate the battery negative cable.
2. Using a trim stick or equivalent, gently pry LED door lamp from the door panel.
3. Disconnect the electrical connector and remove the LED lamp.
