Electronic Brake Control Module: Diagrams

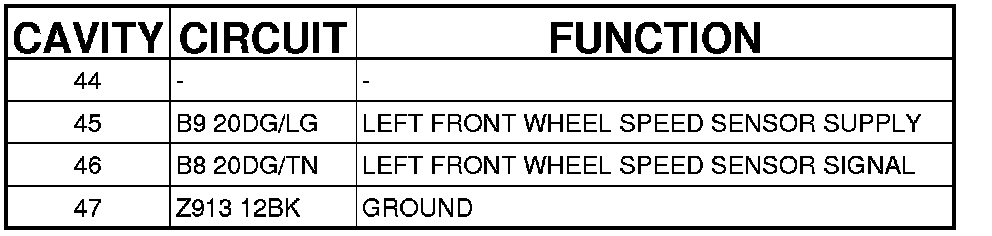

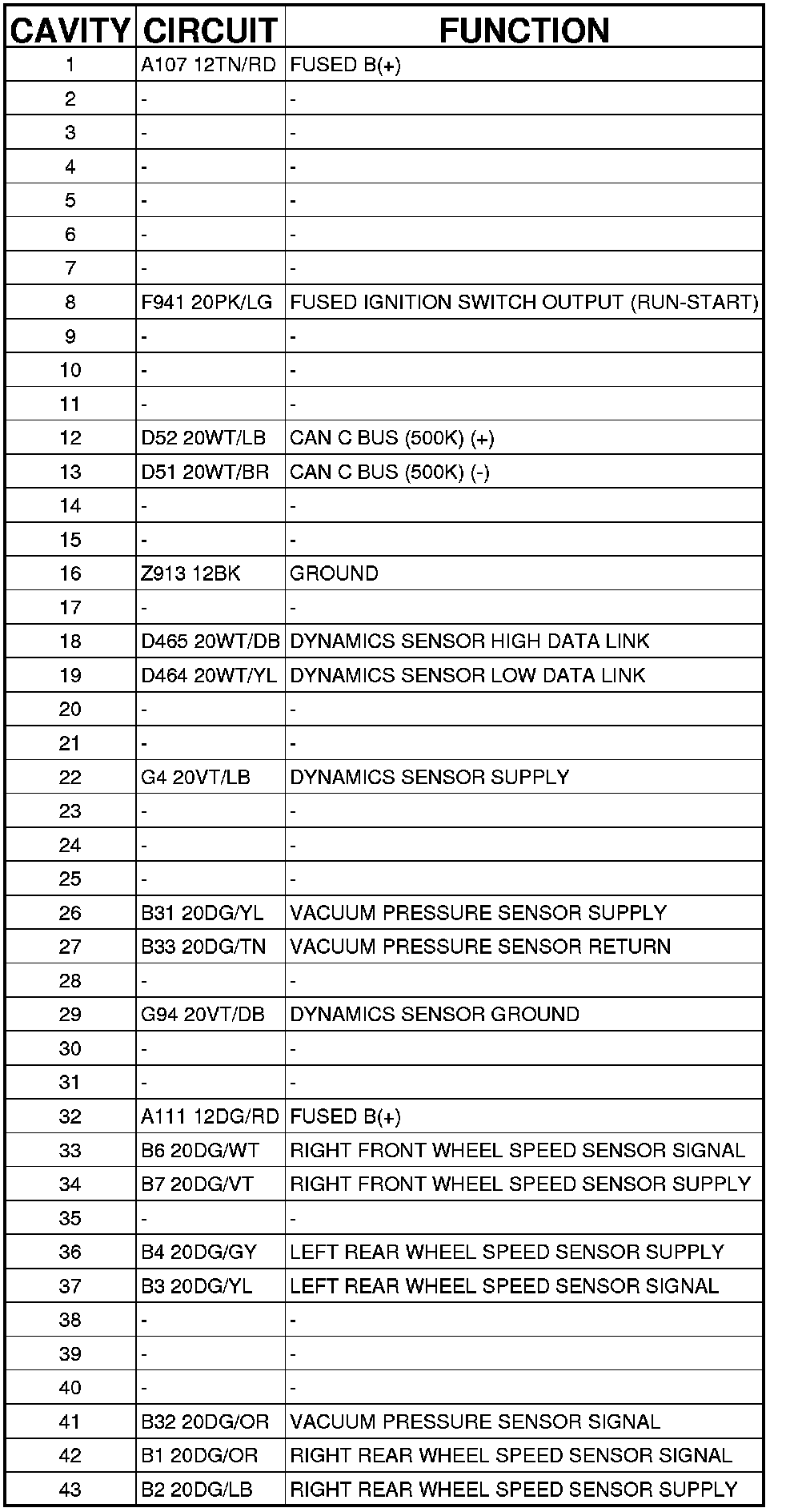

Connector - (ABS) 47 WAY

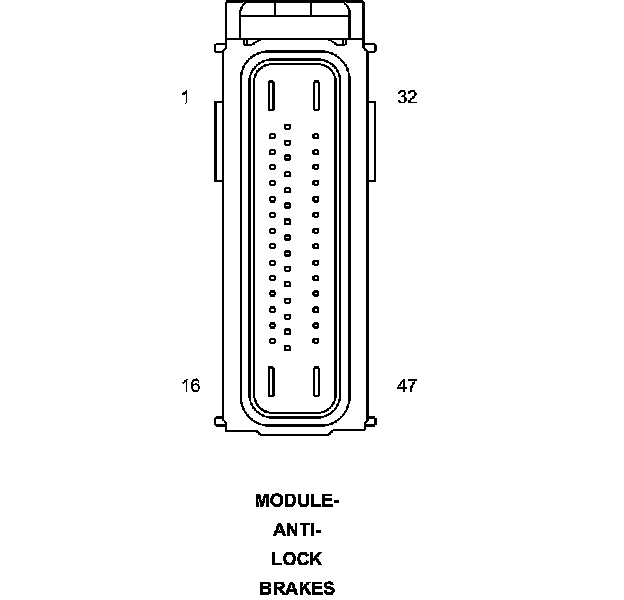

MODULE-ANTI-LOCK BRAKES - (ABS) 47 WAY
