Output Speed Sensor (62TE) 2 Way

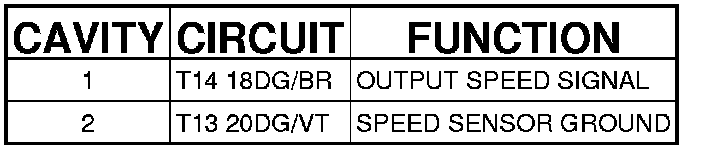

Connector (62TE) - (POWERTRAIN) 2 WAY

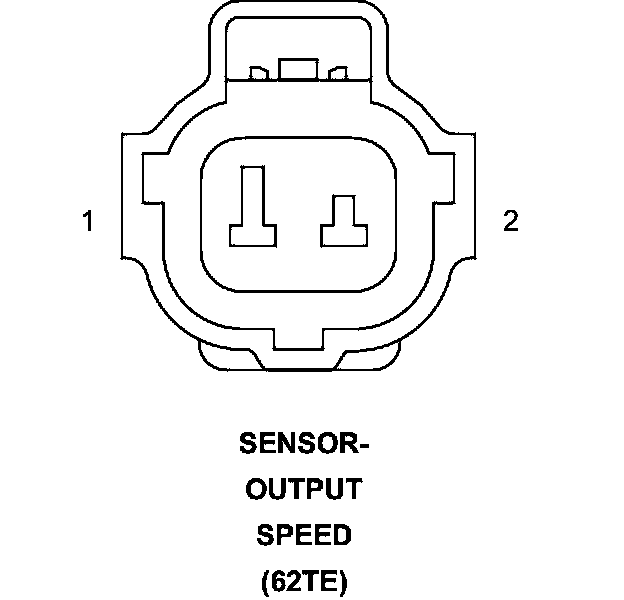

SENSOR-OUTPUT SPEED (62TE) - (POWERTRAIN) 2 WAY
