Air Bag Control Module
>>
Occupant Restraint Controller Module (Body) 36 Way
>>
C1-B

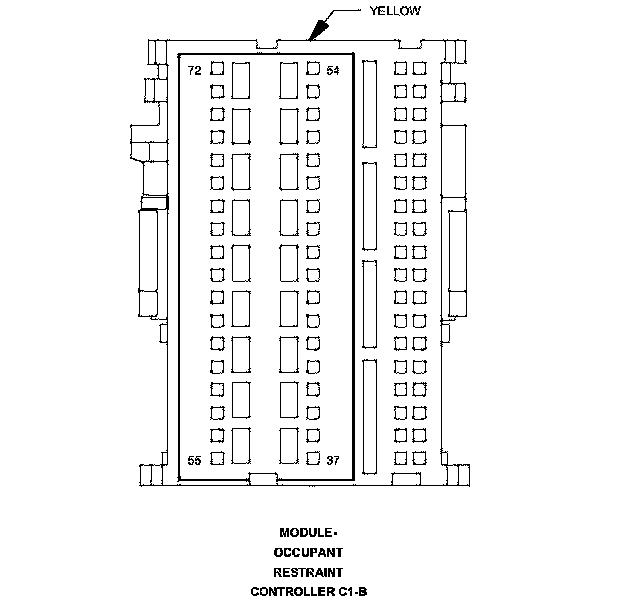

C1-B

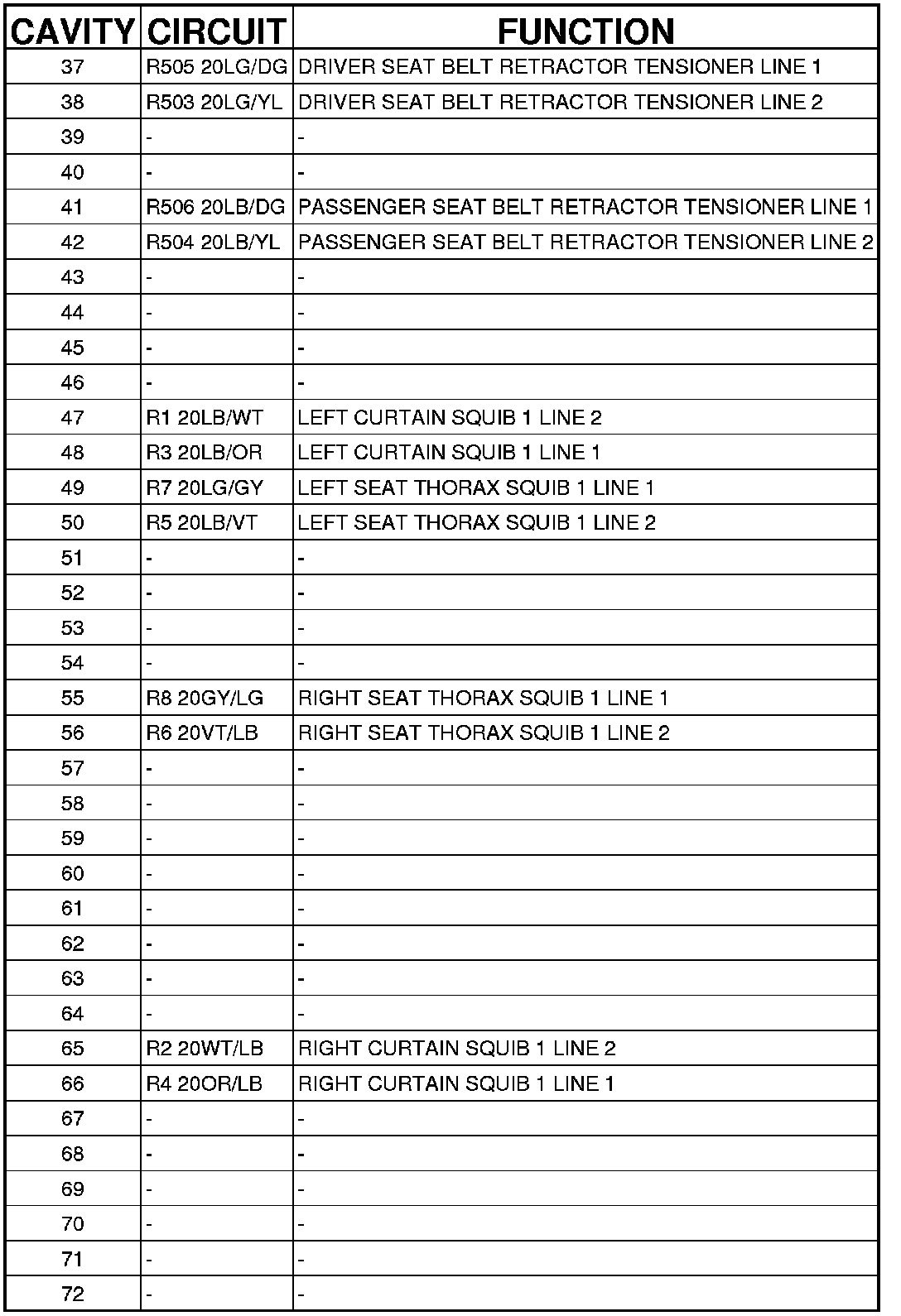

Connector - (BODY) 36 WAY
MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 36 WAY
