C2-A

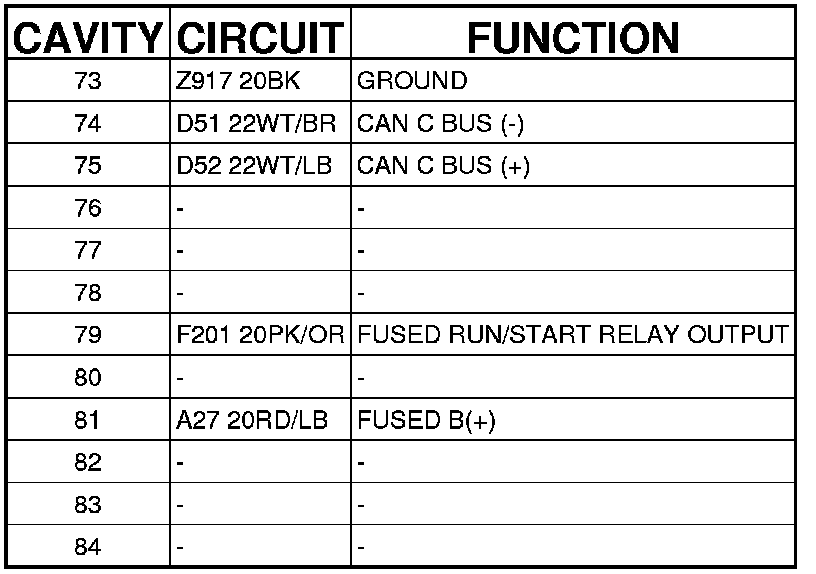

Connector - (INSTRUMENT PANEL) 12 WAY

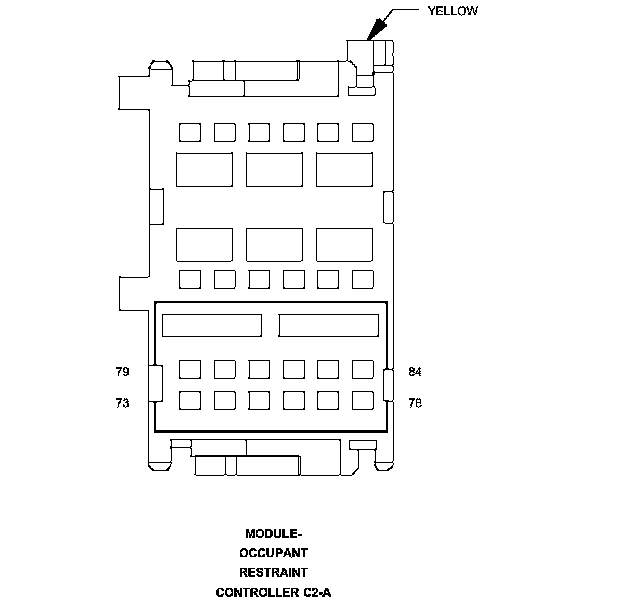

MODULE-OCCUPANT RESTRAINT CONTROLLER - (INSTRUMENT PANEL) 12 WAY
