Front Blower Module (ATC) (Instrument Panel) 4 Way
Front Blower Module (ATC) (Instrument Panel) 4 Way

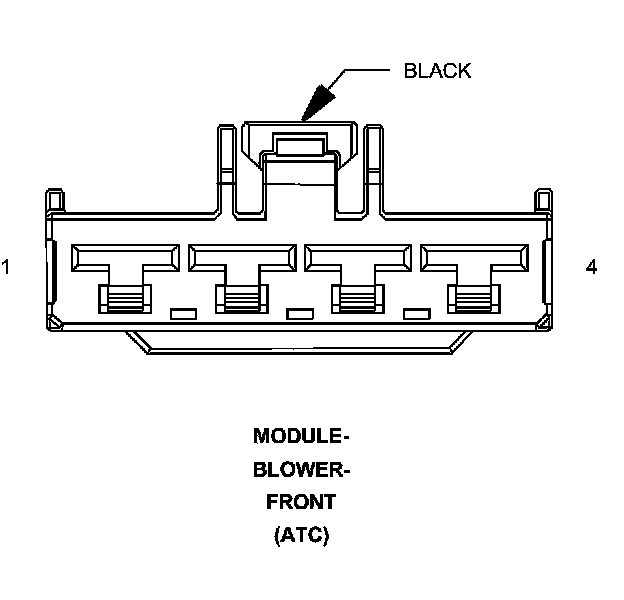

Connector (ATC) - (INSTRUMENT PANEL) 4 WAY

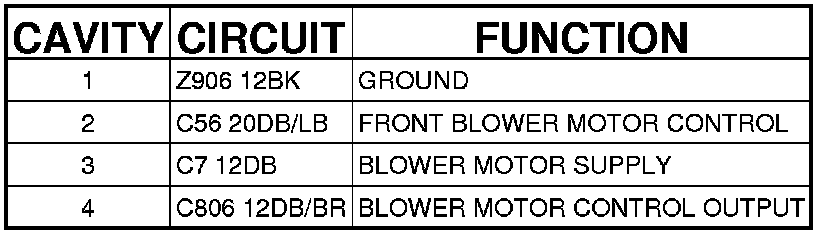

MODULE-BLOWER-FRONT (ATC) - (INSTRUMENT PANEL) 4 WAY
