Differential Assembly

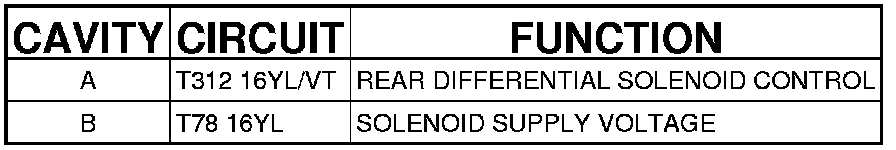

Connector (AWD) - (FUEL TANK JUMPER) 2 WAY

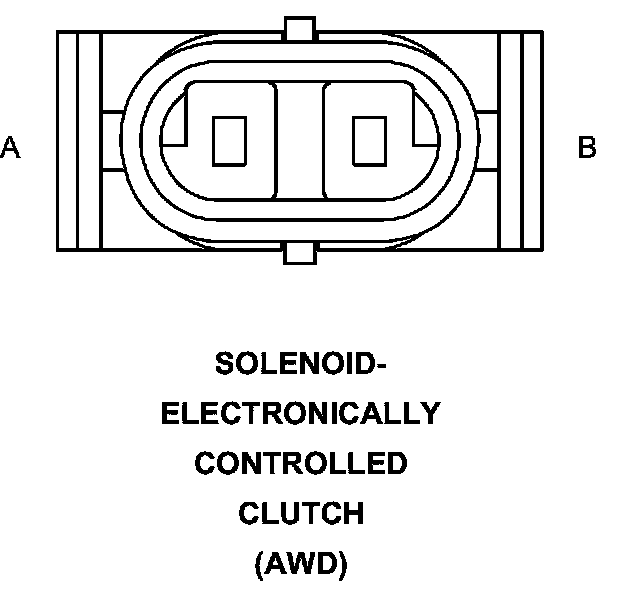

SOLENOID-ELECTRONICALLY CONTROLLED CLUTCH (AWD) - (FUEL TANK JUMPER) 2 WAY
