Totally Integrated Power Module C1 (Headlamp And Dash) 14 Way
>>

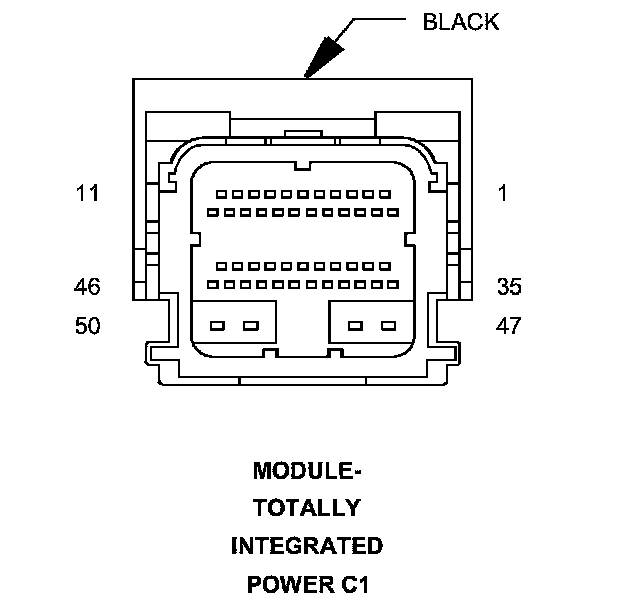

Module-Totally Integrated Power C1
Module-Totally Integrated Power C1

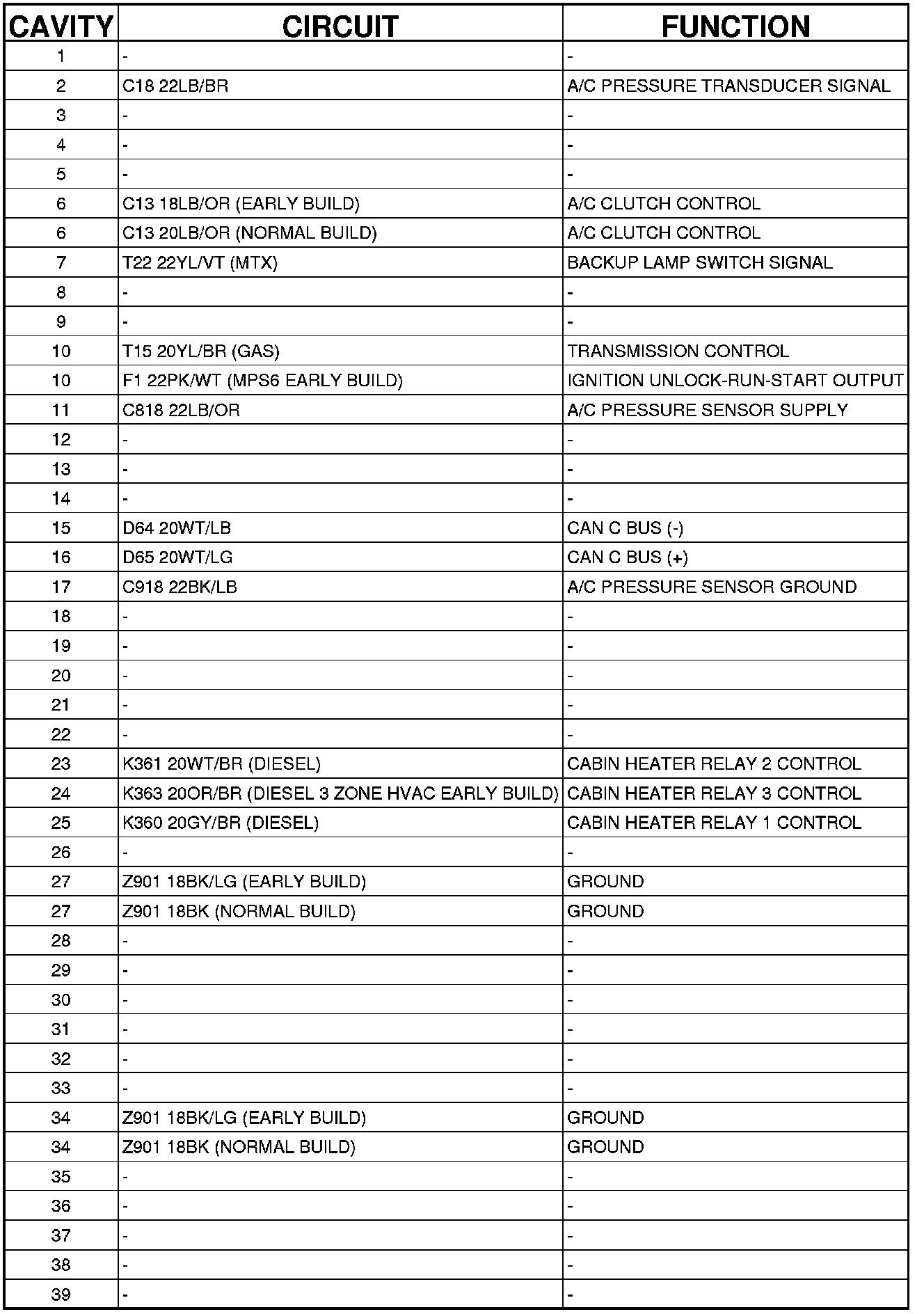

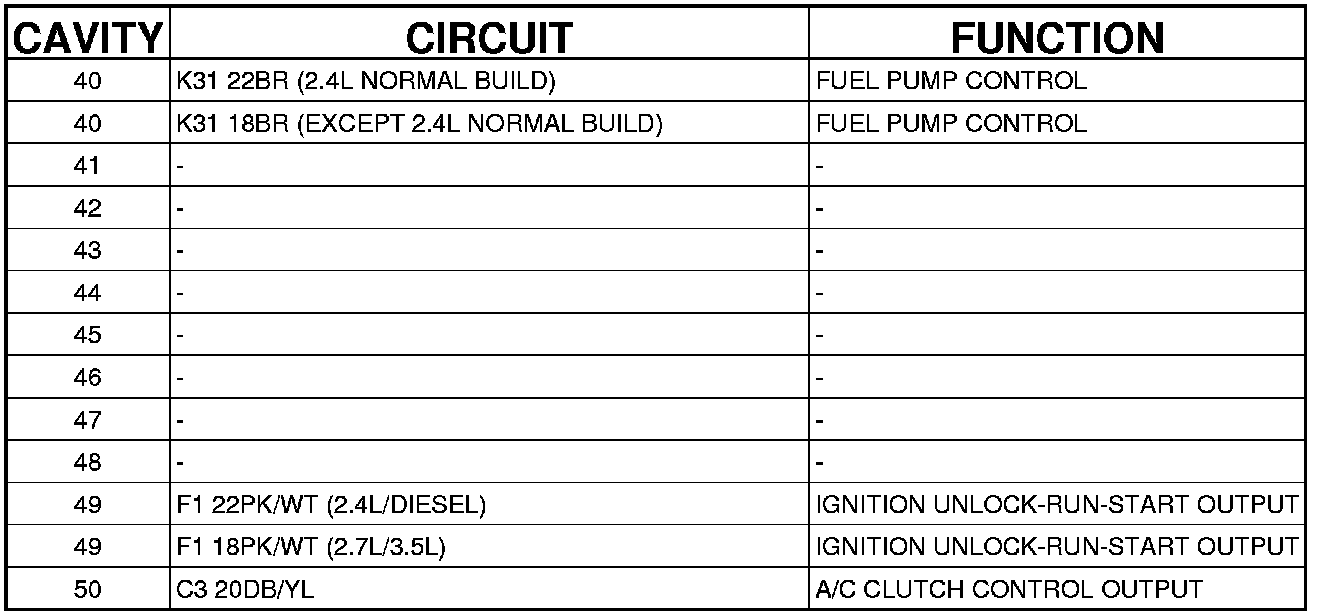

Connector C1 - (HEADLAMP AND DASH) 50 WAY
MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 50 WAY
