Module-Totally Integrated Power C7

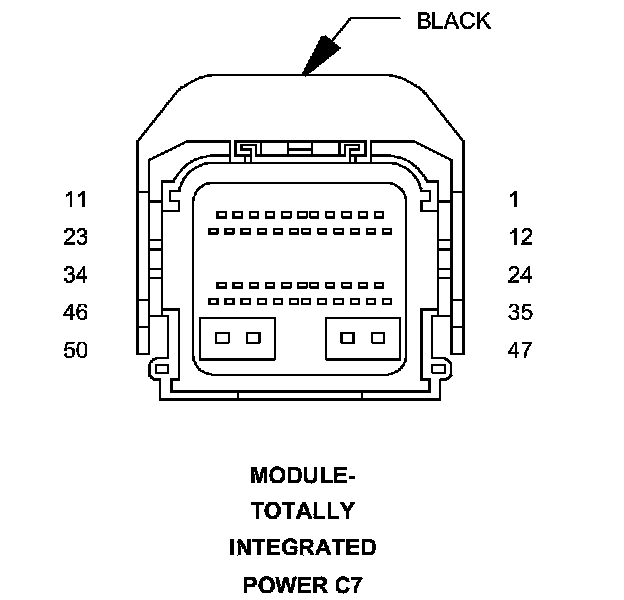

Connector C7 - (HEADLAMP AND DASH) 50 WAY

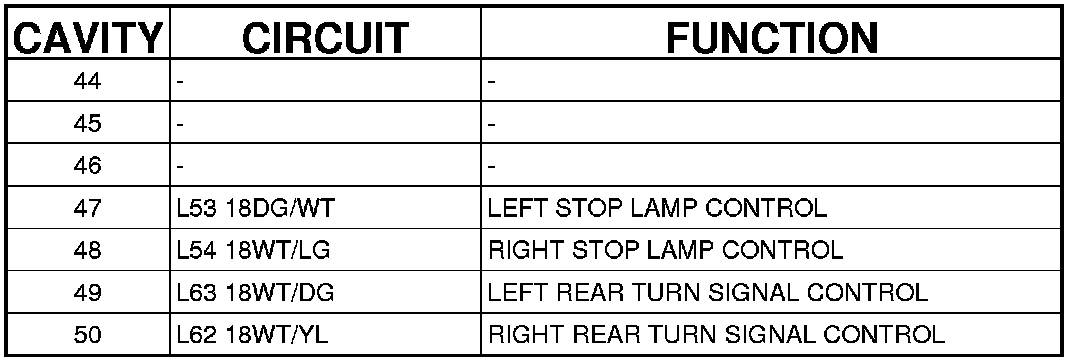

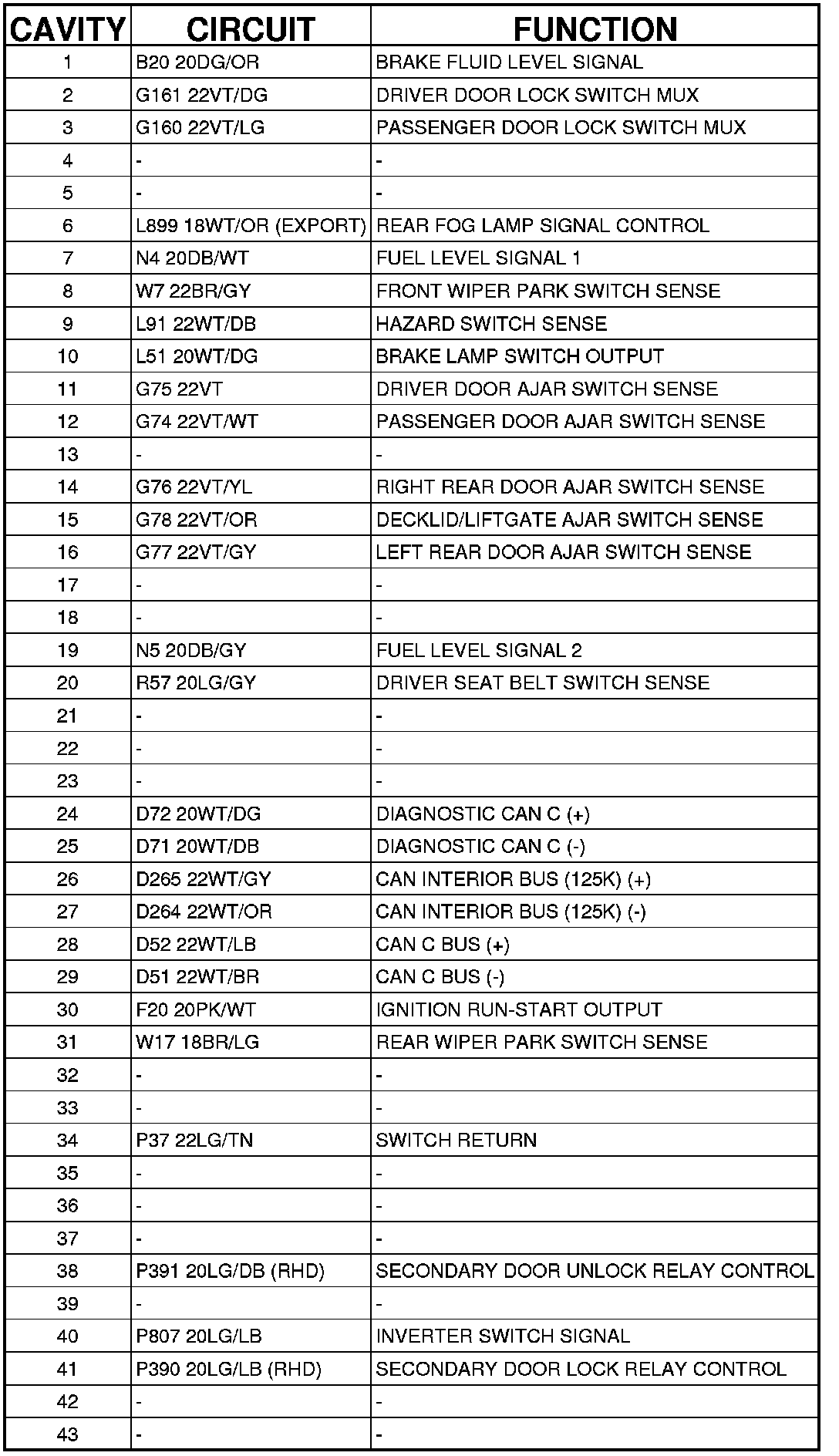

MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 50 WAY
