Dodge and Ram
>>
2009
>>
Journey FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
Power Seat Switch

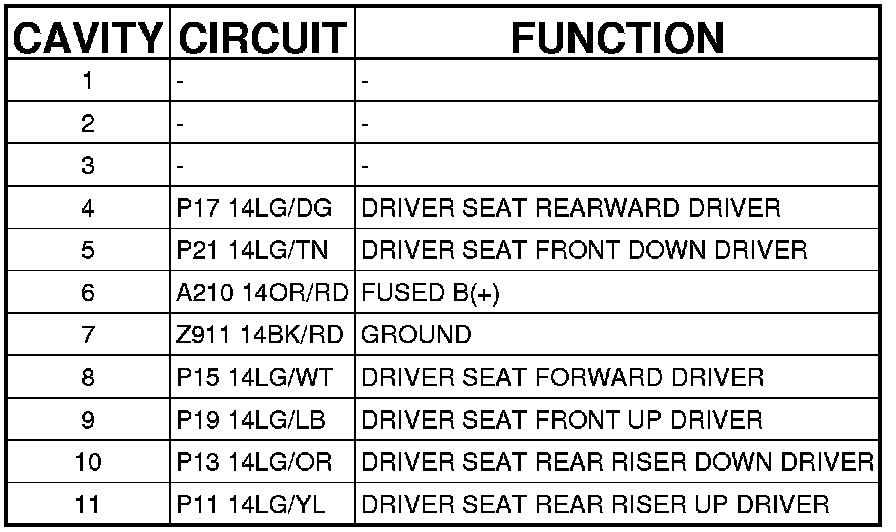

Connector - (SEAT) 11 WAY

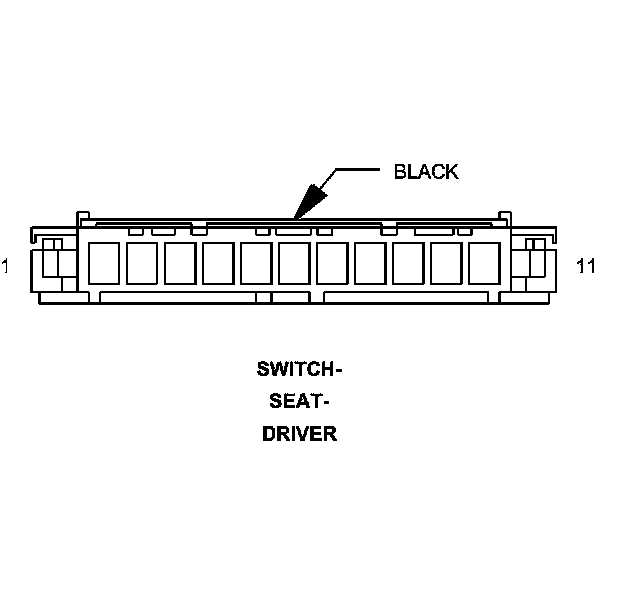

SWITCH-SEAT-DRIVER - (SEAT) 11 WAY
