Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

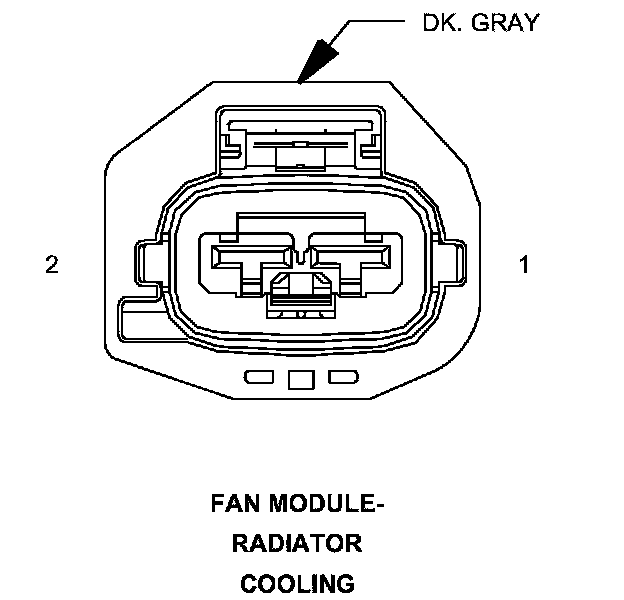

Connector - (FRONT END MODULE) 2 WAY

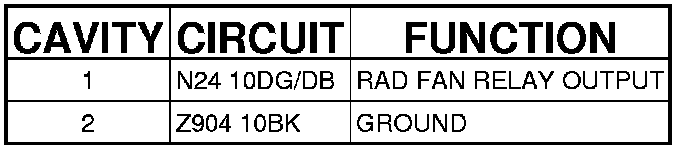

FAN MODULE-RADIATOR COOLING - (FRONT END MODULE) 2 WAY
