Dodge and Ram
>>
2009
>>
Journey FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rear Vision Camera
Rear Vision Camera

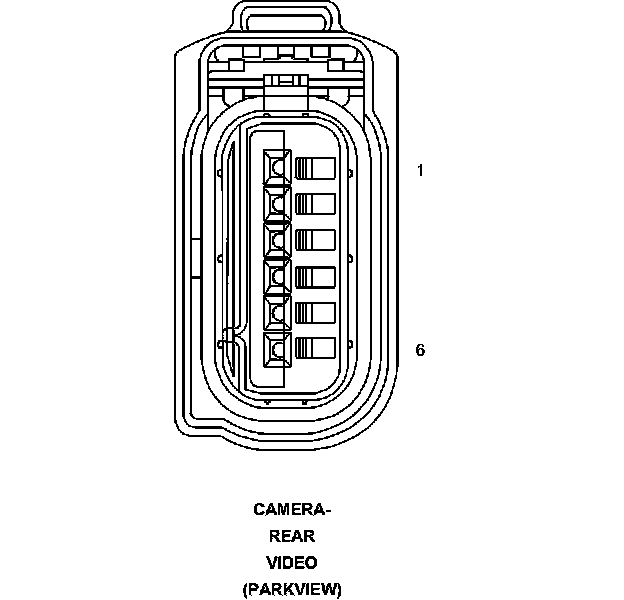

Connector (PARKVIEW) - (LIFTGATE) 6 WAY
CAMERA

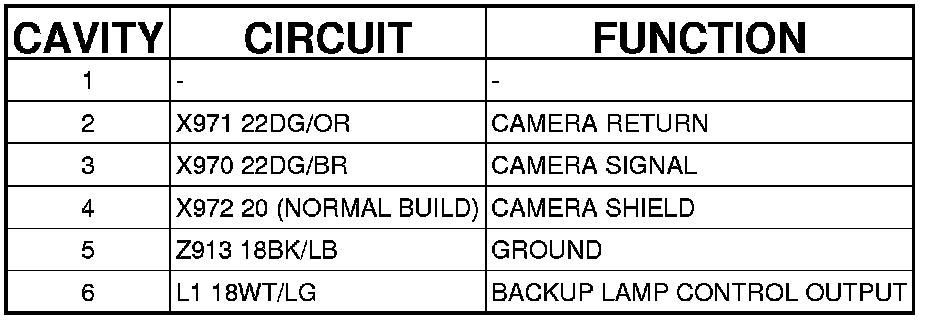

-REAR VIDEO (PARKVIEW) - (LIFTGATE) 6 WAY
