Dodge and Ram
>>
2009
>>
Journey FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Left Front Lamp Assembly C2 (Front End Module) 2 Way
Left Front Lamp Assembly C2 (Front End Module) 2 Way

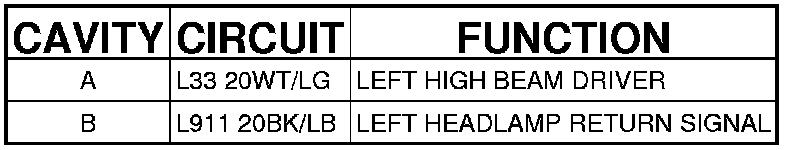

Connector C2 - (FRONT END MODULE) 2 WAY

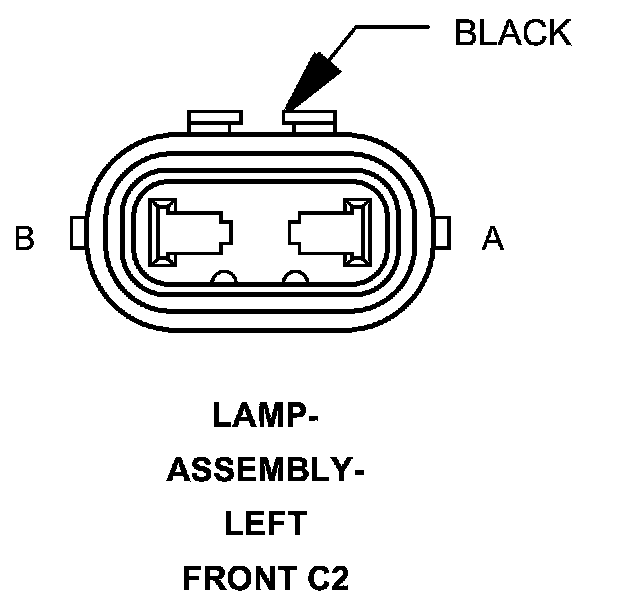

LAMP-ASSEMBLY-LEFT FRONT - (FRONT END MODULE) 2 WAY
