Home >> Dodge and Ram >> 2009 >> Journey FWD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

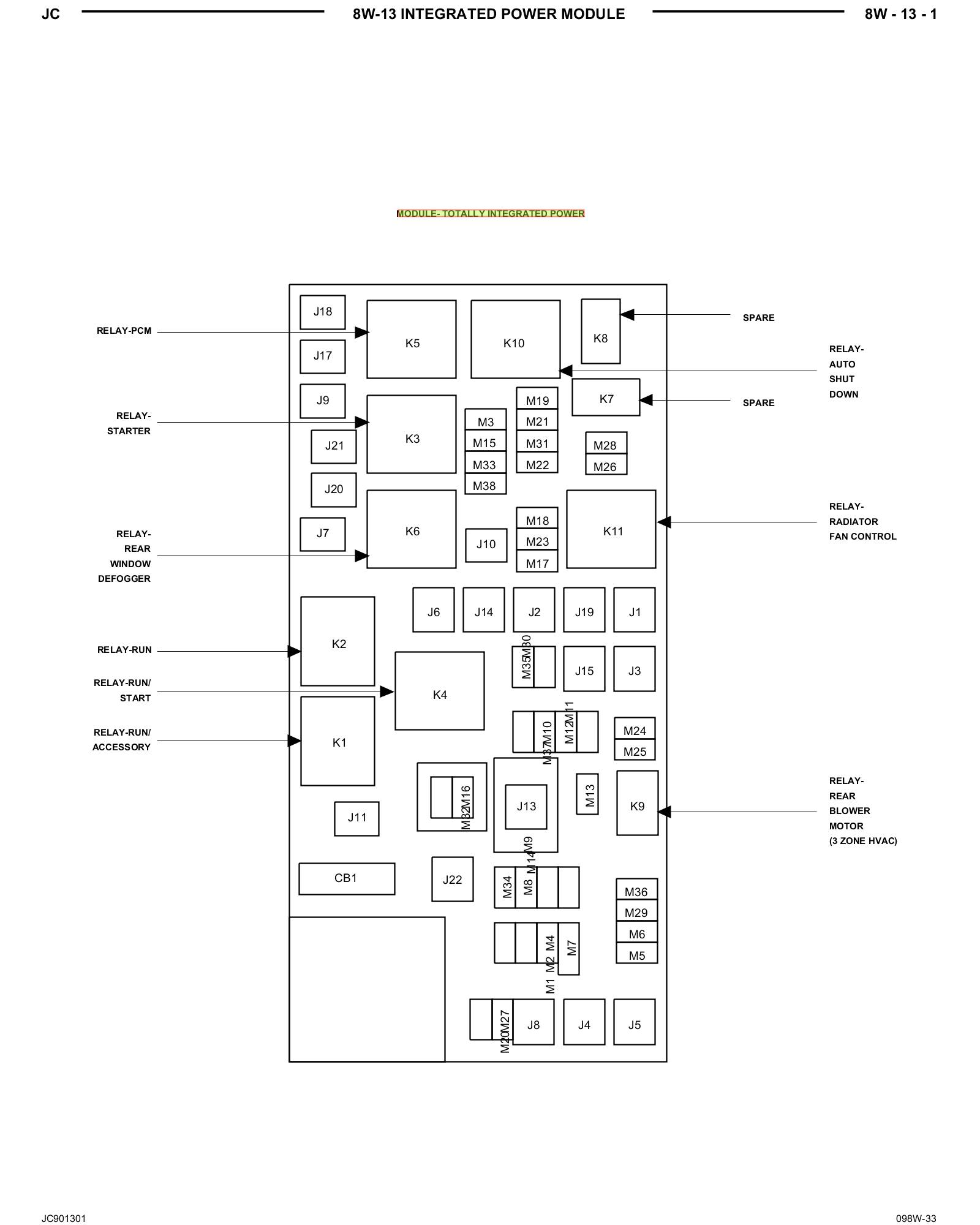

Integrated Power Module 8W-13-01:
