Home >> Dodge and Ram >> 2009 >> Journey FWD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID

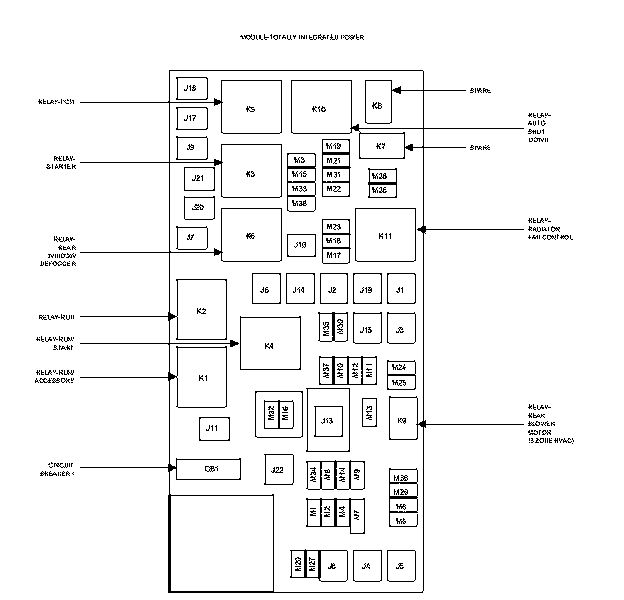

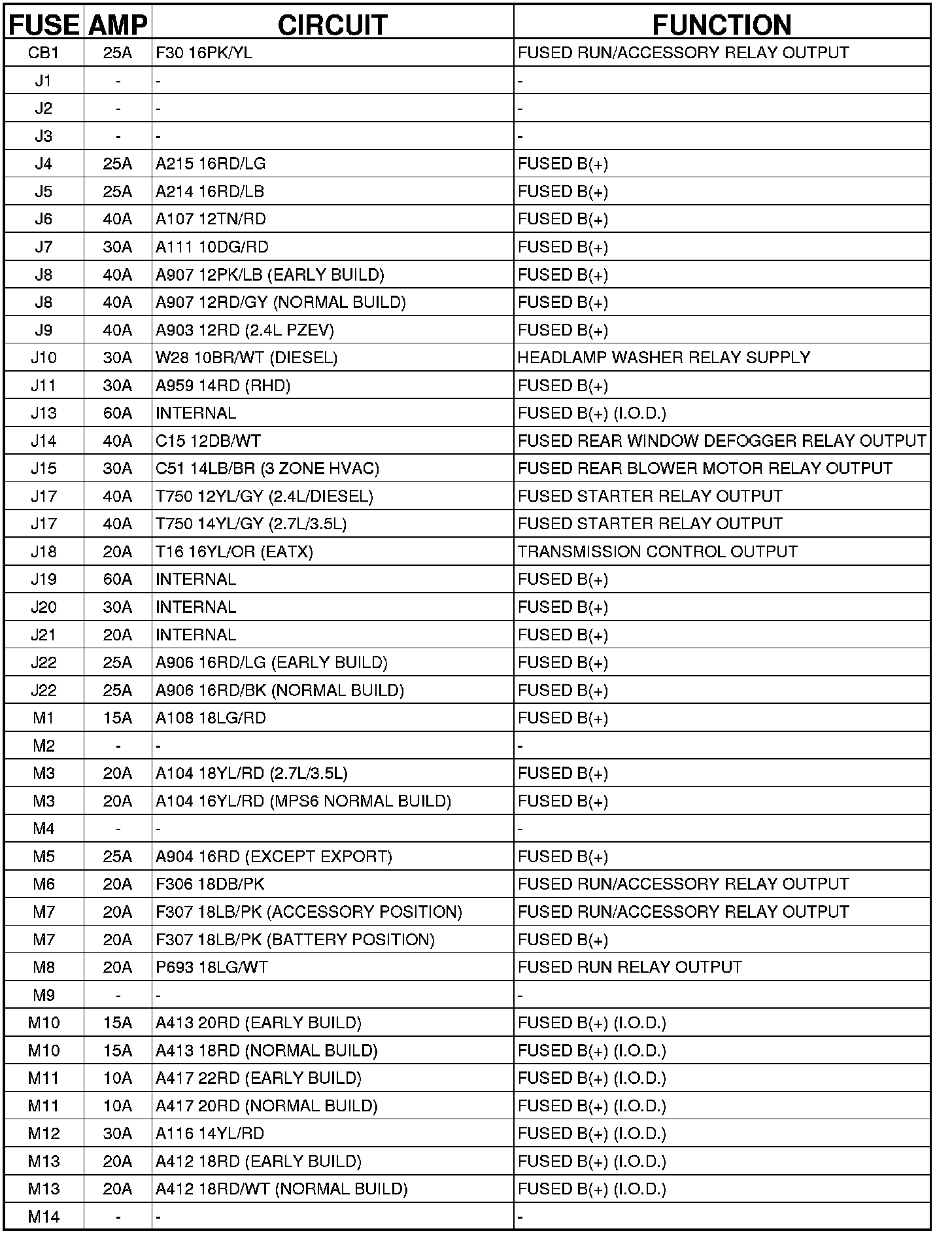

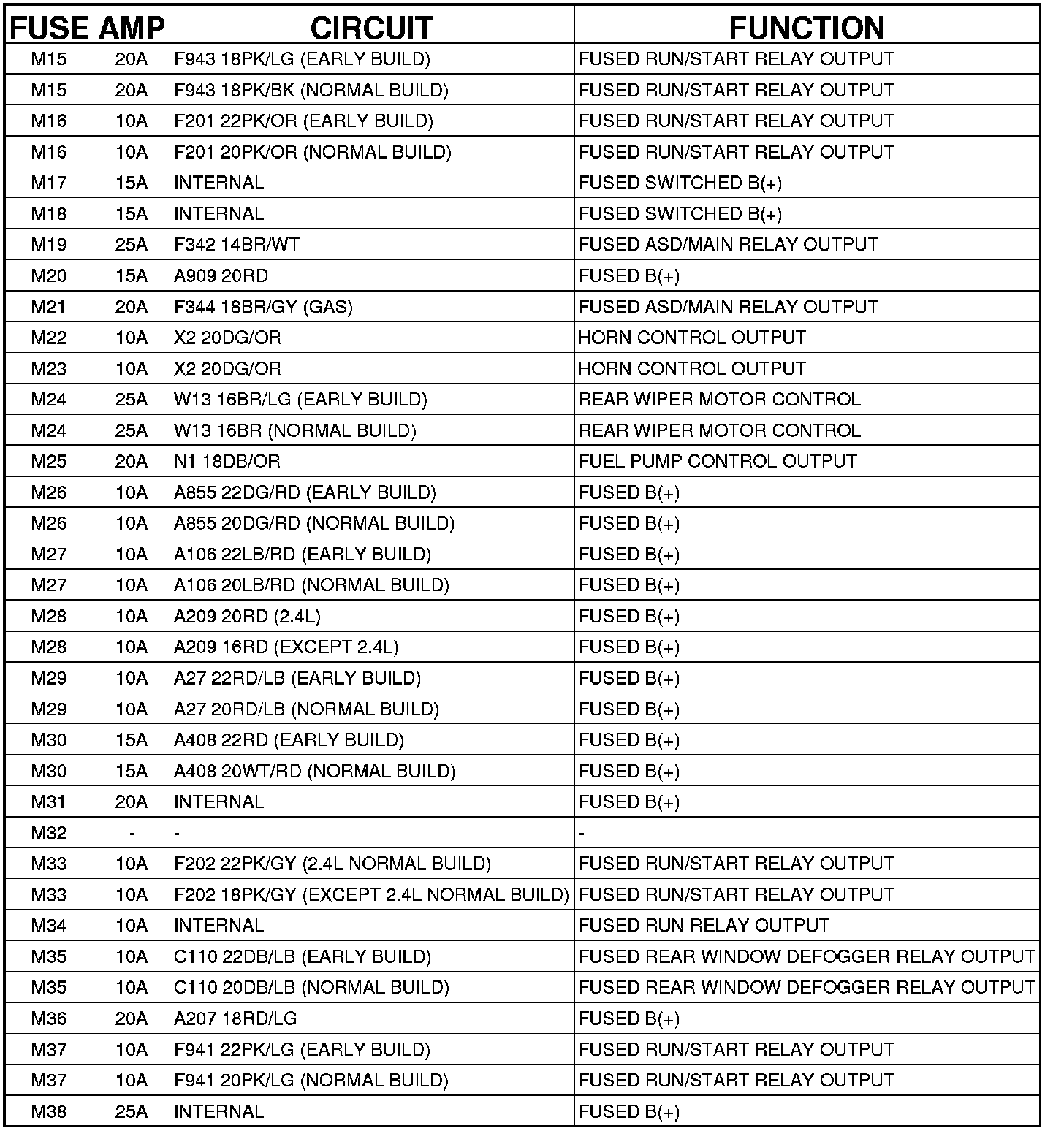

Fuse: Application and ID






Connector - (IN TIPM)




CIRCUIT BREAKER 1 - (IN TIPM)
