Camshaft Position Sensor: Diagrams

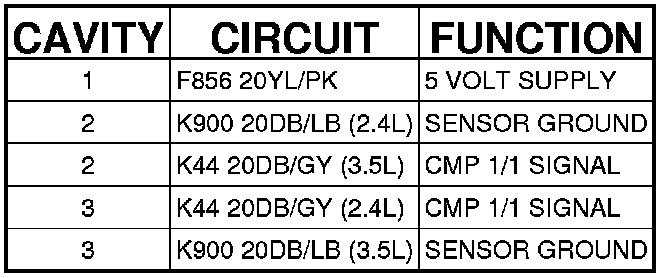

Connector (2.4L/3.5L) - (ENGINE) 3 WAY

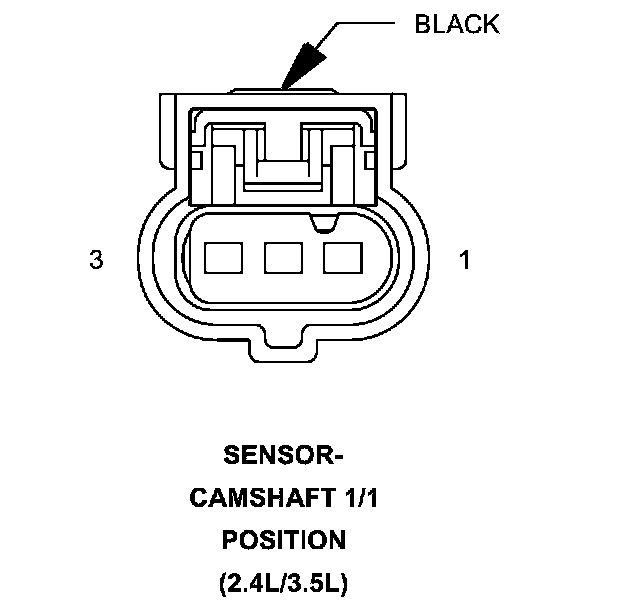

SENSOR-CAMSHAFT 1/1 POSITION (2.4L/3.5L) - (ENGINE) 3 WAY
