Tightening Torque & Sequence

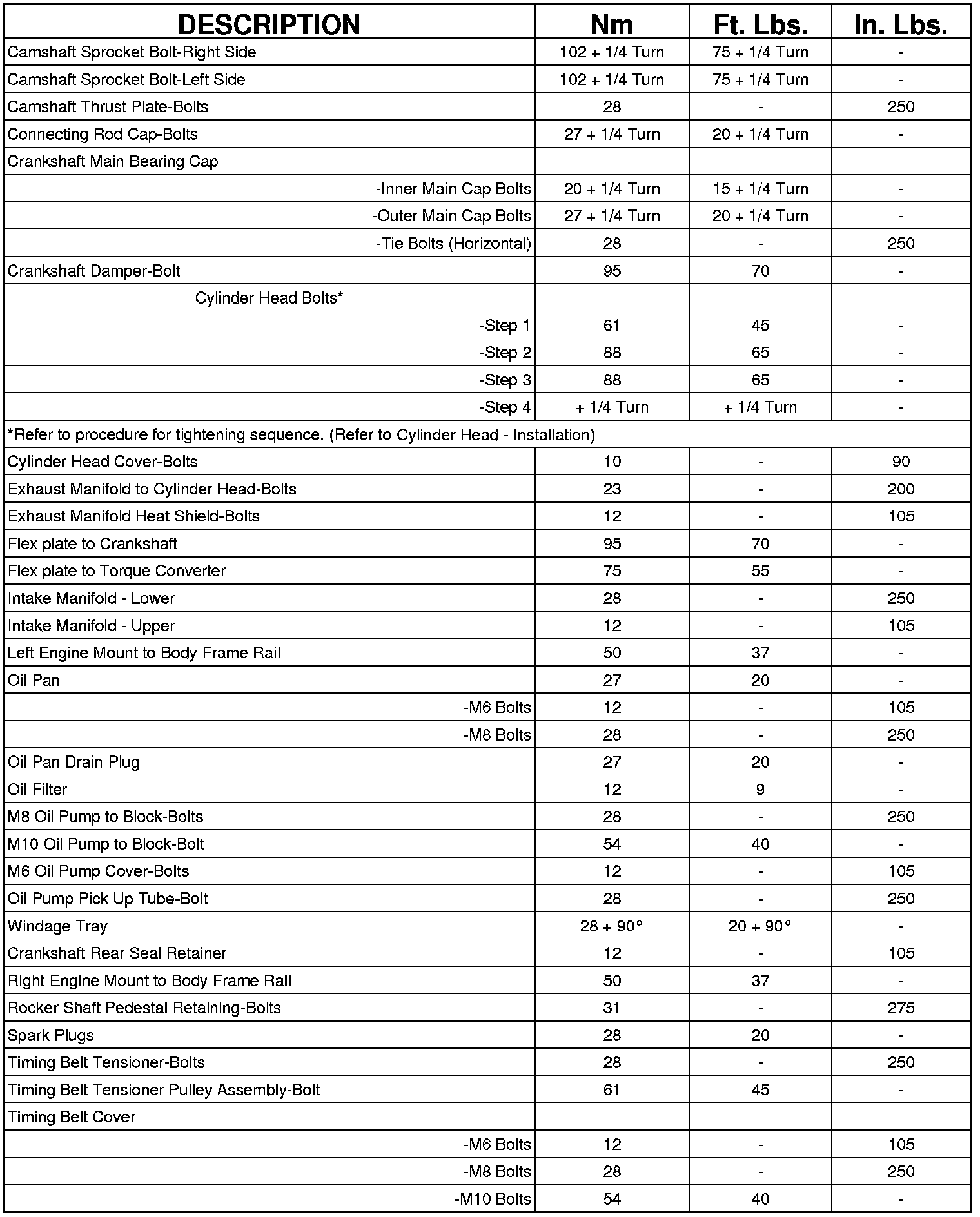

TORQUE









CYLINDER HEAD






Tighten the cylinder head bolts in the sequence shown using the following four step torque-turn method:
Step 1: All 61 Nm (45 ft. lbs.)
Step 2: All 88 Nm (65 ft. lbs.)
Step 3: All (again) 88 Nm (65 ft. lbs.)
Step 4: + 90° Turn

CAUTION: Do not use a torque wrench for this step.

Bolt torque after 90° turn should be over 122 Nm (90 ft. lbs.) in the tightening direction. If not, replace the bolt.

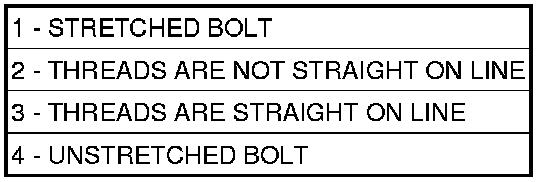

HEAD BOLT REUSE/REPLACE










The cylinder head bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced. Failure to replace a damaged bolt may lead to possible engine damage.

INTAKE MANIFOLD





Lower

Upper - (Tighten bolts gradually starting in the center working outward)

MAIN BEARING CAP

NOTE: The main bearing cap bolts must be tightened in the proper sequence. First the inner main cap bolts, secondly the windage tray bolts, lastly the main cap tie (horizontal) bolts.

Water Pump

Bolts - Water Pump 12 Nm (9 ft.lb., 106 in. lb.)
