Nitro 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Remote Switch, Audio - Stereo
>>
Right Remote Radio Switch 2 Way
Right Remote Radio Switch 2 Way

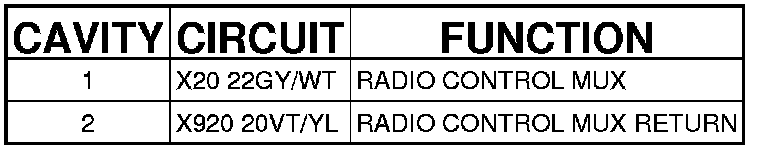

Connector - 2 WAY

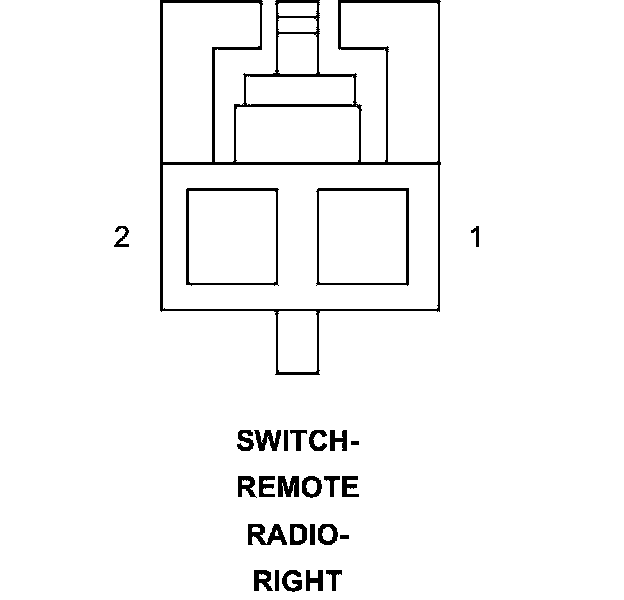

SWITCH-REMOTE RADIO-RIGHT - 2 WAY
