Engine Control Module C1 (5.9L) 60 Way
Engine Control Module C1 (5.9L) 60 Way

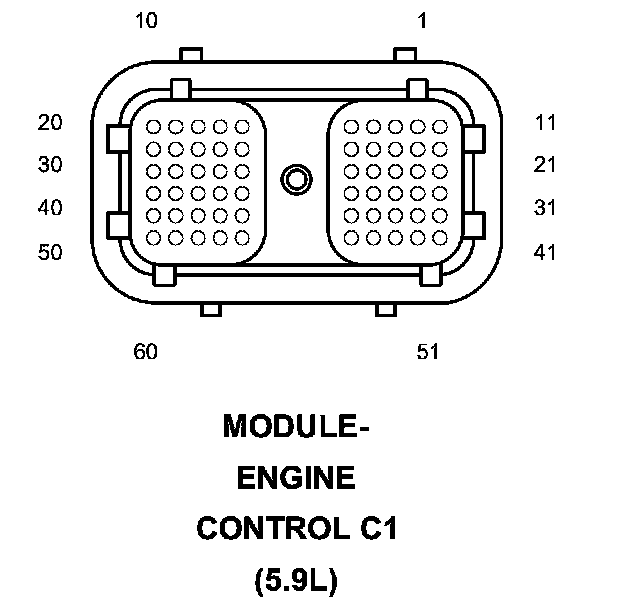

Connector C1 (5.9L) - (ENGINE) 60 WAY

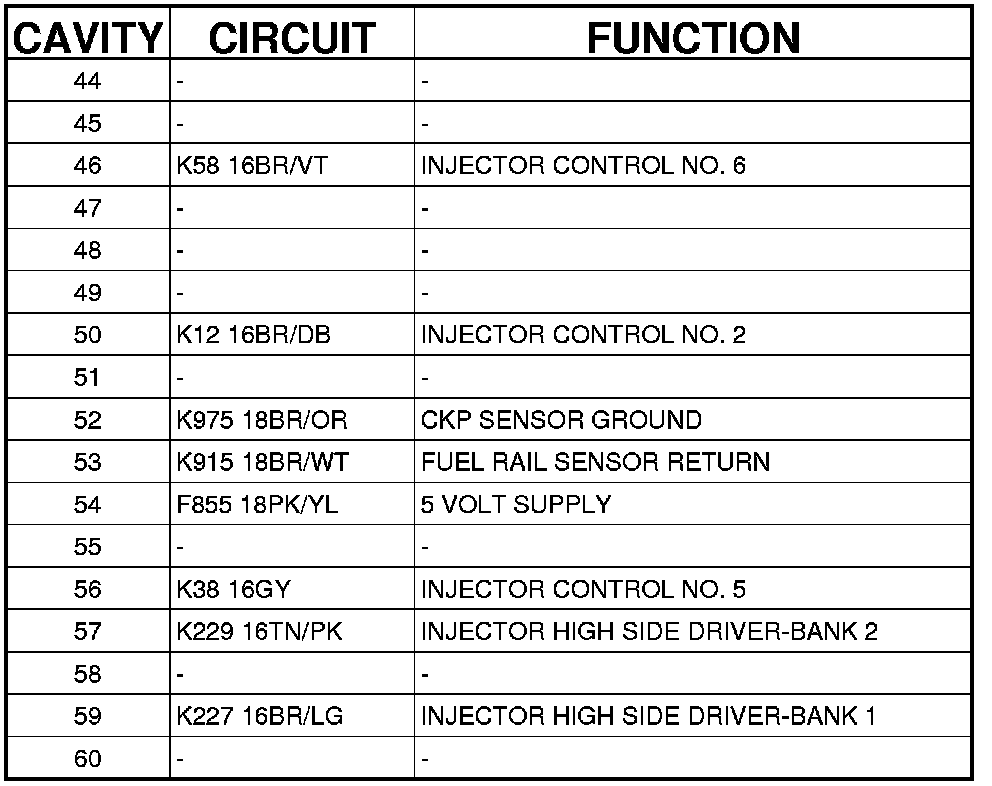

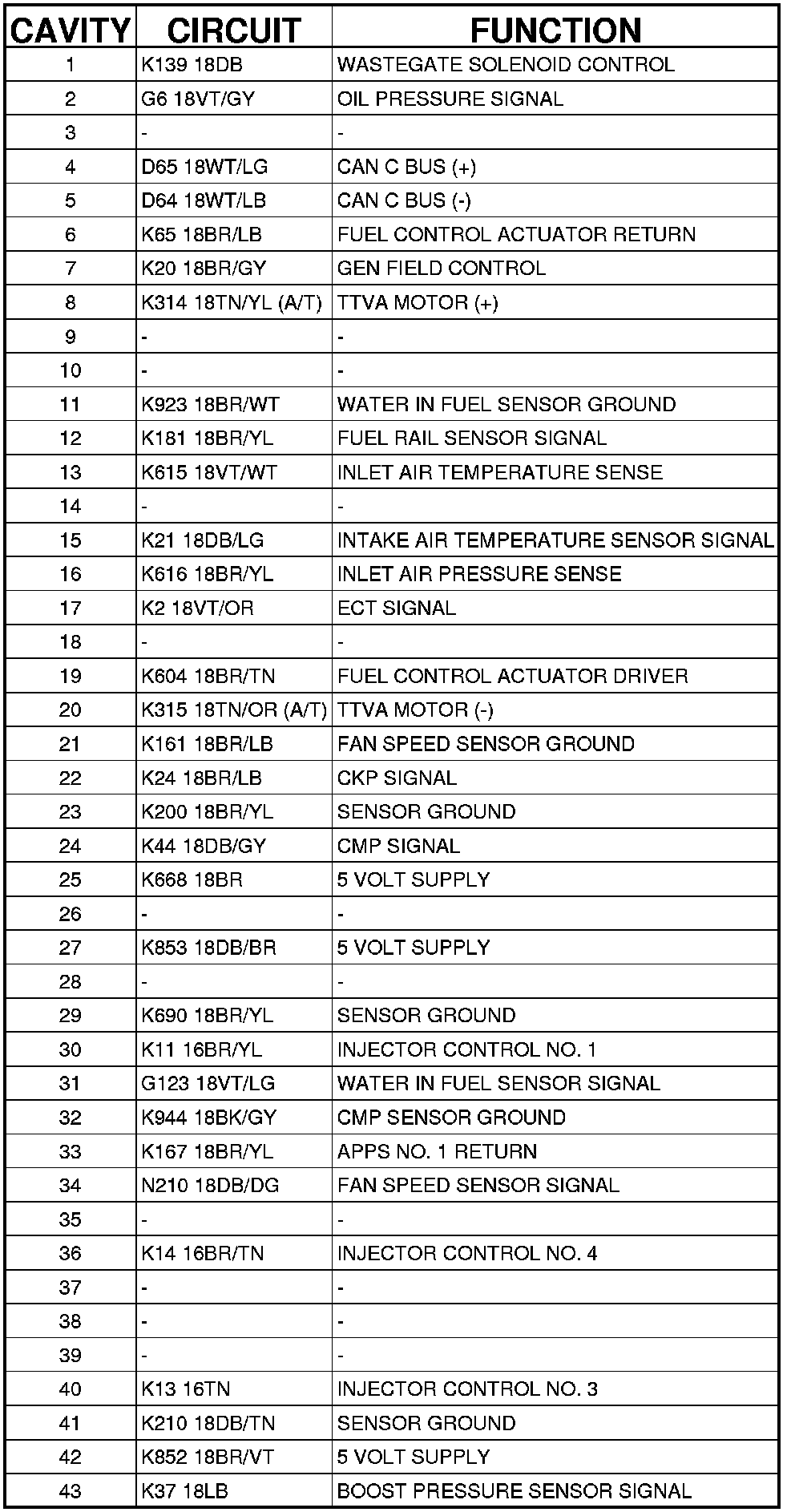

MODULE-ENGINE CONTROL (5.9L) - (ENGINE) 60 WAY
