Transmission Position Sensor/Switch: Diagrams

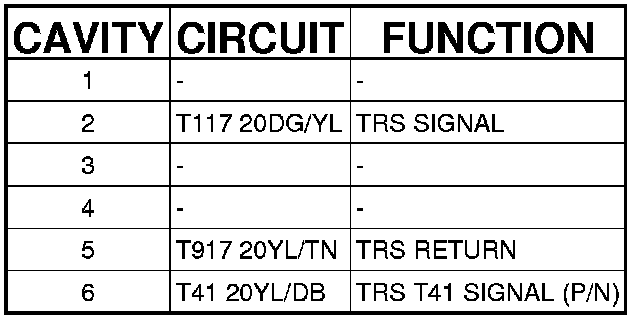

Connector (RE) - (TRANSMISSION) 6 WAY

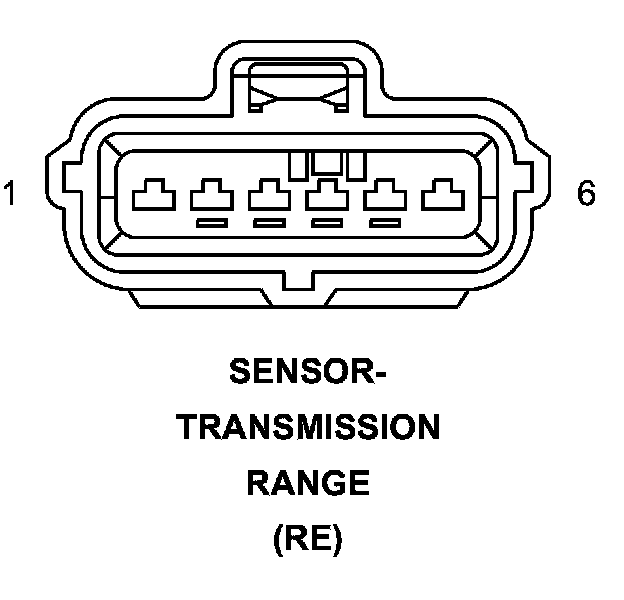

SENSOR-TRANSMISSION RANGE (RE) - (TRANSMISSION) 6 WAY
