Engine Torque Specifications

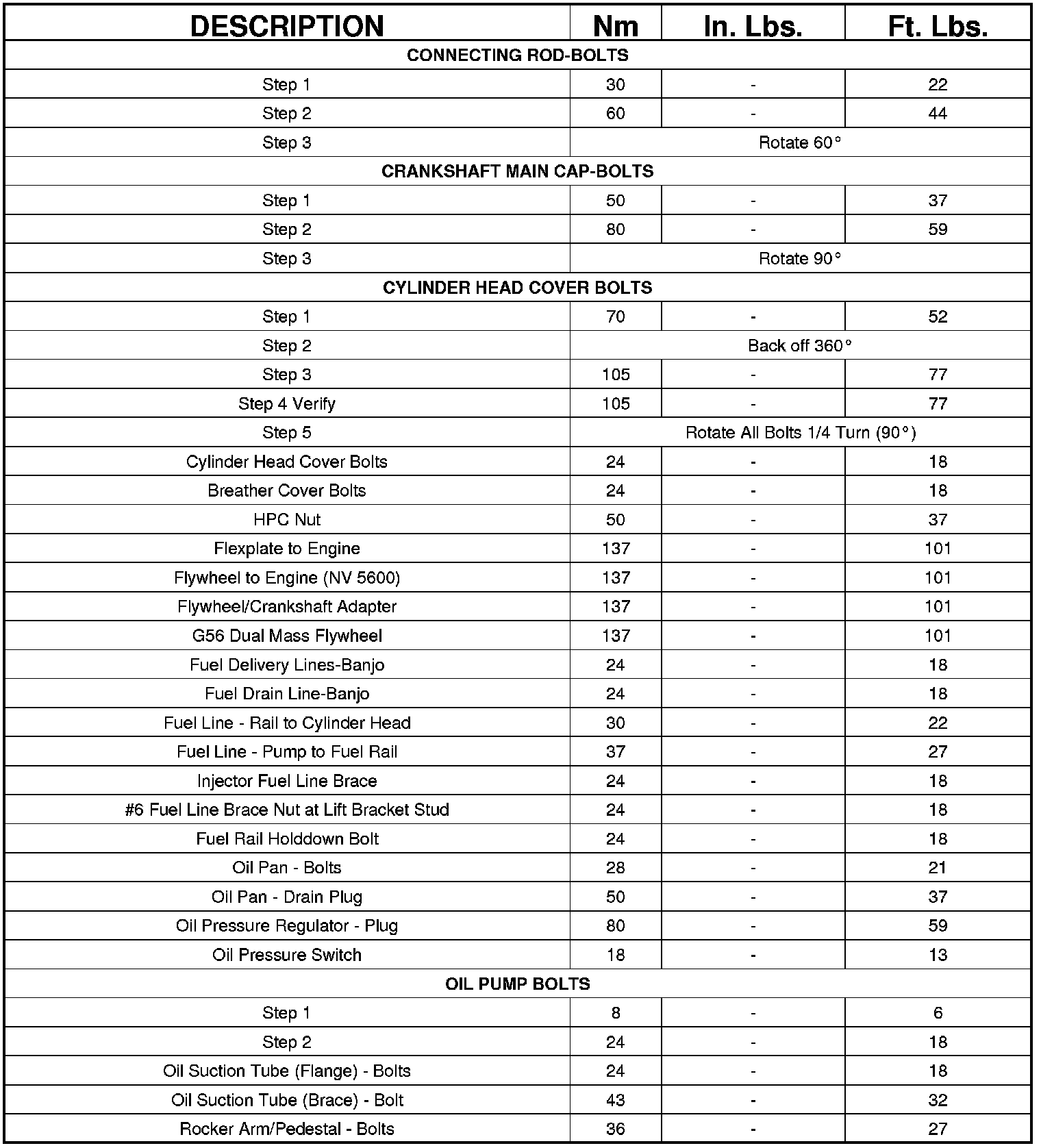

TORQUE

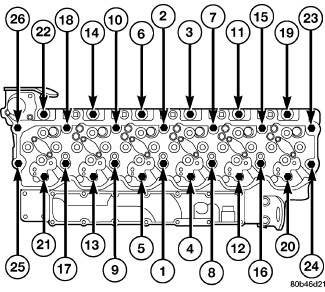

CYLINDER HEAD BOLT SEQUENCE





WATER PUMP BOLTS

- Tighten mounting bolts (1) to 24 Nm (18 ft. lbs.) torque.

EXHAUST MANIFOLD BOLTS

- Tighten the bolts to 43 Nm (32 ft. lbs.).

CRANKSHAFT DAMPER BOLTS

- Tighten bolts to 40 Nm (30 ft. lbs.), plus an additional 60°.
