Crankshaft Position Sensor - Installation






INSTALLATION

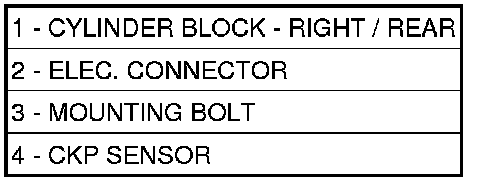

1. Clean out machined hole in cylinder block (1).
2. Apply a small amount of engine oil to CKP sensor O-ring.
3. Install CKP sensor (4) into cylinder block with a slight rocking and twisting motion.

CAUTION: Before tightening the CKP sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.

4. Install mounting bolt (3) and tighten to 28 Nm (21 ft. lbs.) torque.
5. Connect electrical connector (2) to CKP sensor.
6. Lower vehicle.
