Body - Wind Noise/Whistle From A-Pillar/Front Door Area
NUMBER: 23-024-11GROUP: Body
DATE: June 18, 2011
THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE TRANSMITTAL (RRT) 11-057. ALL APPLICABLE 2011 DS, DJ, DD, DP SOLD AND UN-SOLD RRT VIN's BUILT BETWEEN DECEMBER 1, 2010 AND APRIL 18, 2011 HAVE BEEN LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS APPLICABLE TO THE VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN TECHCONNECT. FOR VEHICLES NOT INCLUDED IN THE RRT VIN LIST, APPLICATION OF THIS SERVICE BULLETIN TO SOLD UNITS IS BASED UPON THE CUSTOMER EXPERIENCING THE SYMPTOM/CONDITIONS. ALL REPAIRS ARE REIMBURSABLE WITHIN THE PROVISIONS OF WARRANTY.
SUBJECT:
Whistle And/Or High Pitch Windnoise At Door Near Windshield A-Pillar
OVERVIEW:
This bulletin involves installing a foam stuffer block into door weatherstrip for vehicles on the VIN list or checking for wind noise at A-pillar for vehicles not on the VIN list and if necessary installing a foam stuffer block into door weatherstrip.
MODELS:
2009 (DH) Ram 2500
2009 (D1) Ram 3500
2009 - 2010 (DC) Ram 3500 Cab Chassis
2009 - 2011 (DS) Ram 1500
2009 - 2010 (DM) Ram 4500/5500 Cab Chassis
2010 - 2011 (DJ) Ram 2500
2010 - 2011 (D2) Ram 3500
2011 (DD) Ram 3500 Cab Chassis
2011 (DP) Ram 4500/5500 Cab Chassis
NOTE:
This bulletin applies to vehicles built before April 18, 2011 (MDH 0418XX).
SYMPTOM/CONDITION:
Customer may experience whistle and/or high pitch windnoise at door near windshield A-pillar.
DIAGNOSIS:
If a customer's VIN is listed in VIP or your RRT VIN list, perform the repair. For all other customers that describe the symptom/condition, perform the Repair Procedure.

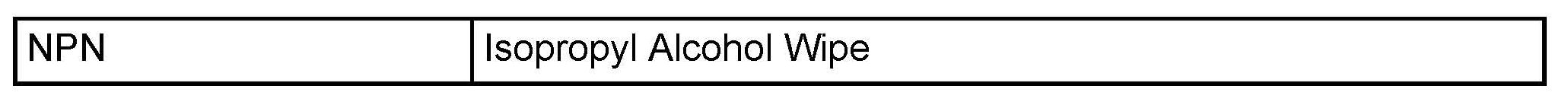

PARTS REQUIRED:
SPECIAL TOOLS/EQUIPMENT REQUIRED:
REPAIR PROCEDURE:
1. Is this vehicle a 2011 model year built between 12/1/2010 and 4/18/2011?
a. Yes >>> proceed to Step # 4
b. No >>> proceed to Step # 2
2. Drive the vehicle at posted highway speeds and listen for a whistle and/or screech noise coming from either Left and/or Right side windshield/A-Pillar area.
3. Does a wind noise condition exist?
a. Yes >>> proceed to Step # 4
b. No >>> Return the vehicle to the customer or dealer inventory.
4. Open the front doors and locate the section of the seal (1)(Fig. 1).
5. Clean the area of weatherstrip (Fig. 1) & (Fig. 2) with isopropyl alcohol wipe on both left and right front doors and allow to dry.
6. Cut out 2 foam blocks using the dimensions below(Fig. 3).
7. Once area is dry apply foam block (Fig. 4).
NOTE:
Locate line (4) on weather strip, just above the door mirror, for proper location of foam block and be sure to position the stuffer with the adhesive side facing down so it bonds to the base of the weather strip at the base between the bulb and lip.
NOTE:
When the door is closed verify there is no bulge where the stuffer was inserted in the weather strip and foam is not visible from outside.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
