Driver Door Latch (Base) (Front Door) 2 Way
Driver Door Latch (Base) (Front Door) 2 Way

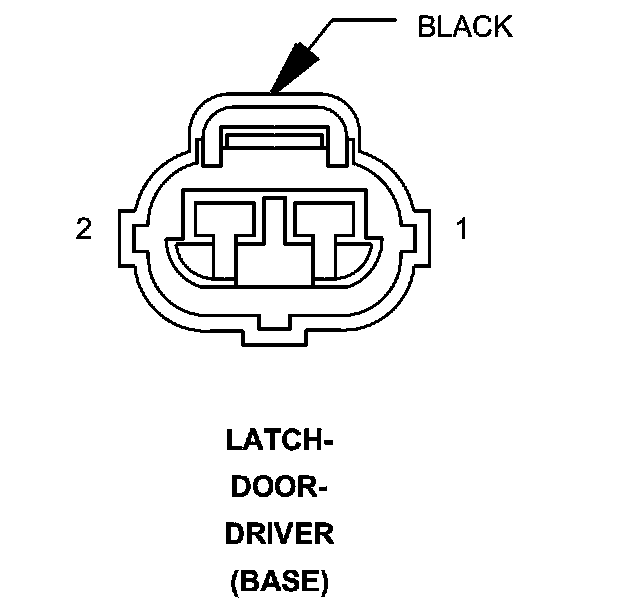

Connector (BASE) - (FRONT DOOR) 2 WAY

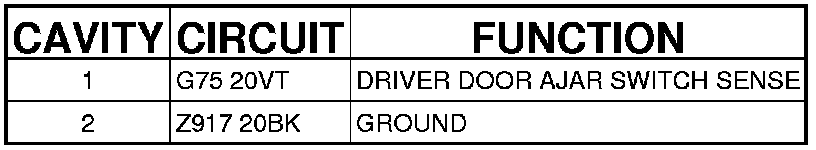

LATCH-DOOR-DRIVER (BASE) - (FRONT DOOR) 2 WAY
