Canada - Recall - J08 Clutch Pedal Linkage Rod
BulletinJ08
Issue Date
2009-06-09
IMPORTANT
DEALER SERVICE INSTRUCTIONS

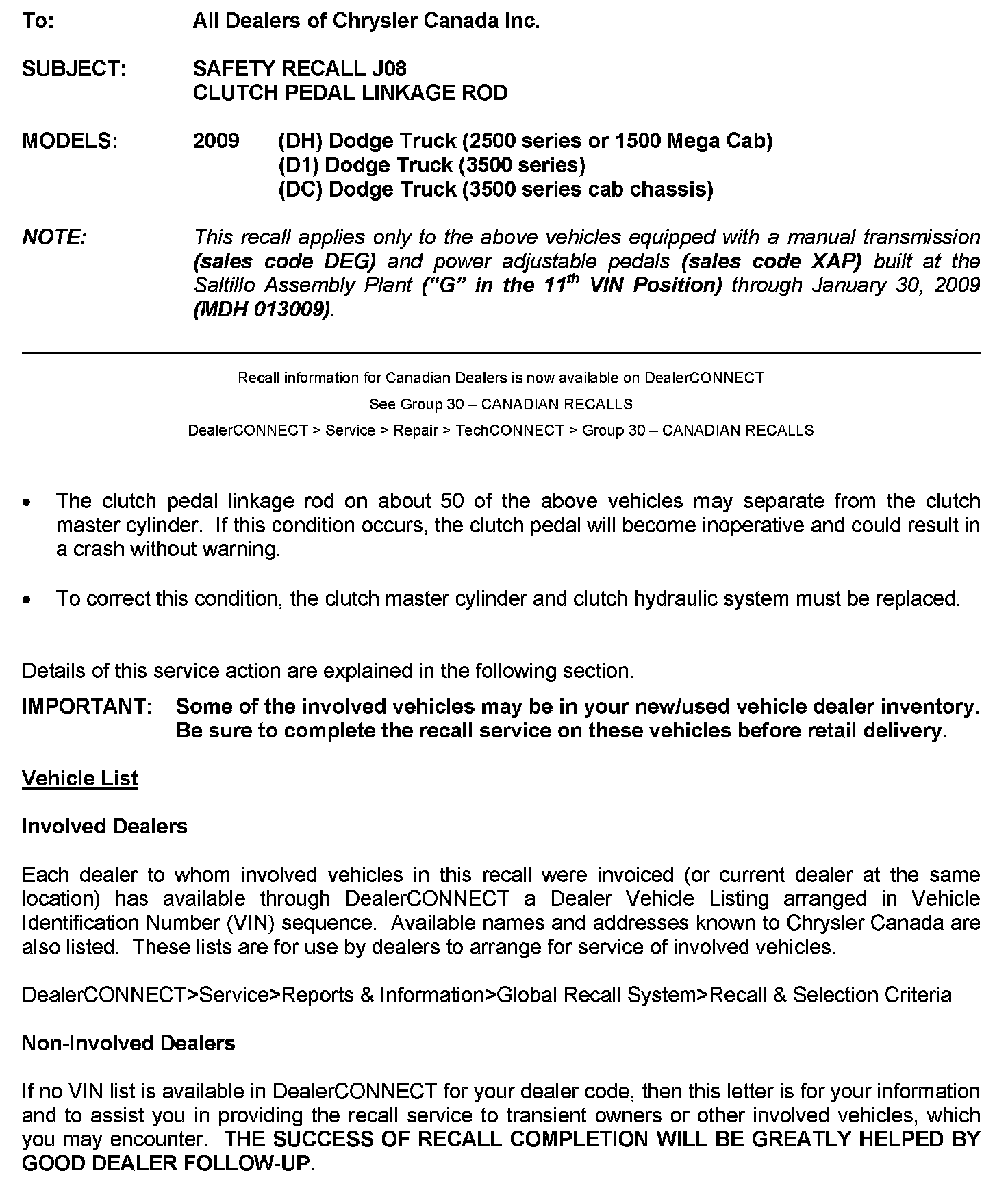

SAFETY RECALL J08 CLUTCH PEDAL LINKAGE ROD
MODELS:
2009 (DH) Dodge Truck (2500 series or 1500 Mega Cab)
(D1) Dodge Truck (3500 series)
(DC) Dodge Truck (3500 series cab chassis)
NOTE:
This recall applies only to the above vehicles equipped with a manual transmission (sales code DEG) and power adjustable pedals (sales code XAP) built at the Saltillo Assembly Plant ("G" in the 11th VIN Position) through January 30, 2009 (MDH 013009).
^ The clutch pedal linkage rod on about 50 of the above vehicles may separate from the clutch master cylinder. If this condition occurs, the clutch pedal will become inoperative and could result in a crash without warning.

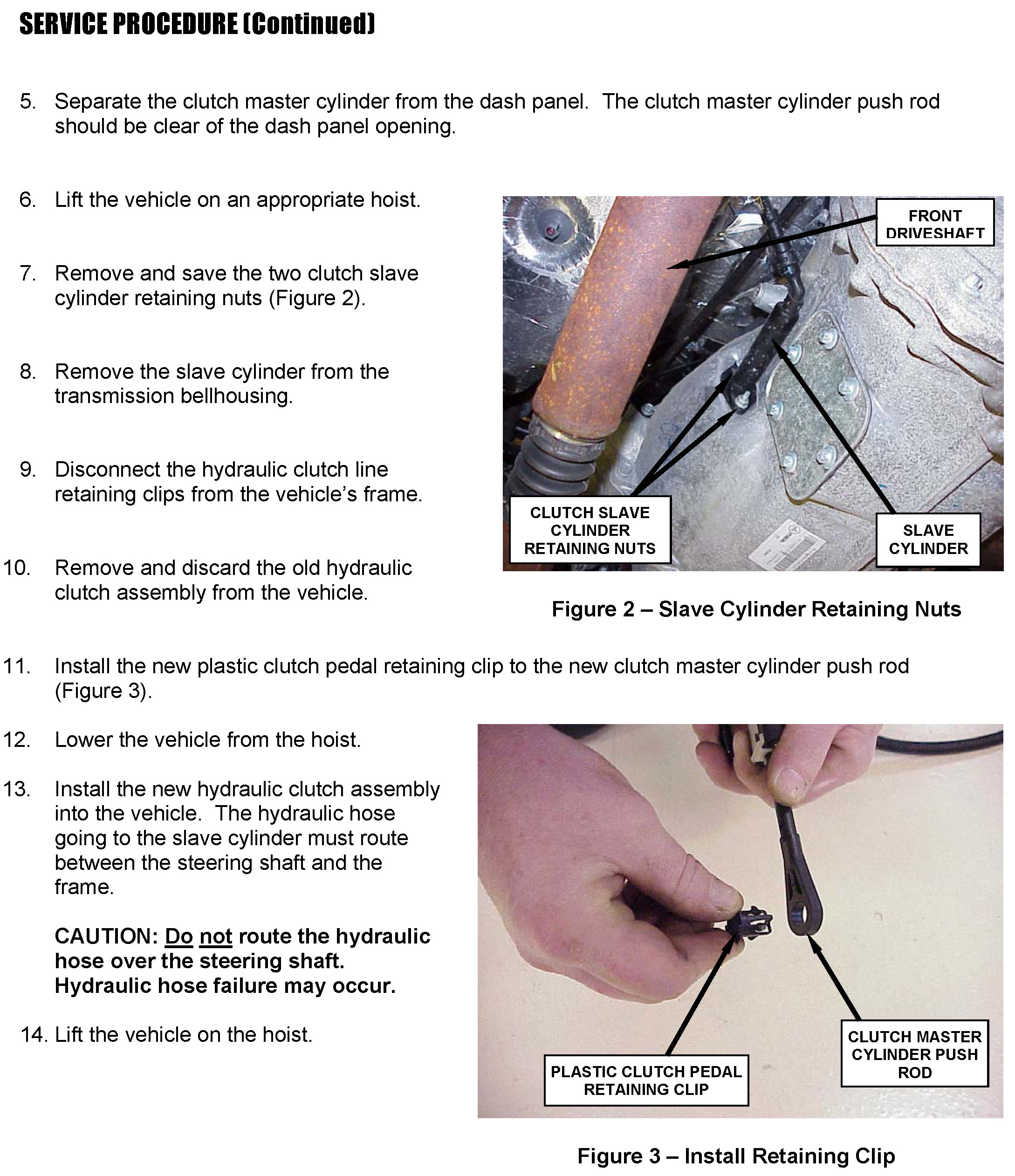

^ To correct this condition, the clutch master cylinder and clutch hydraulic system must be replaced.
Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.
This Canadian Recall Notification can also be found in DealerCONNECT - See below:
DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS
The V.I.N. range for vehicles involved in this campaign is as follows:
3D3KS28L59G500779 - 3D7KS28L19G534748
DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)
GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.
To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.
Dealer Information

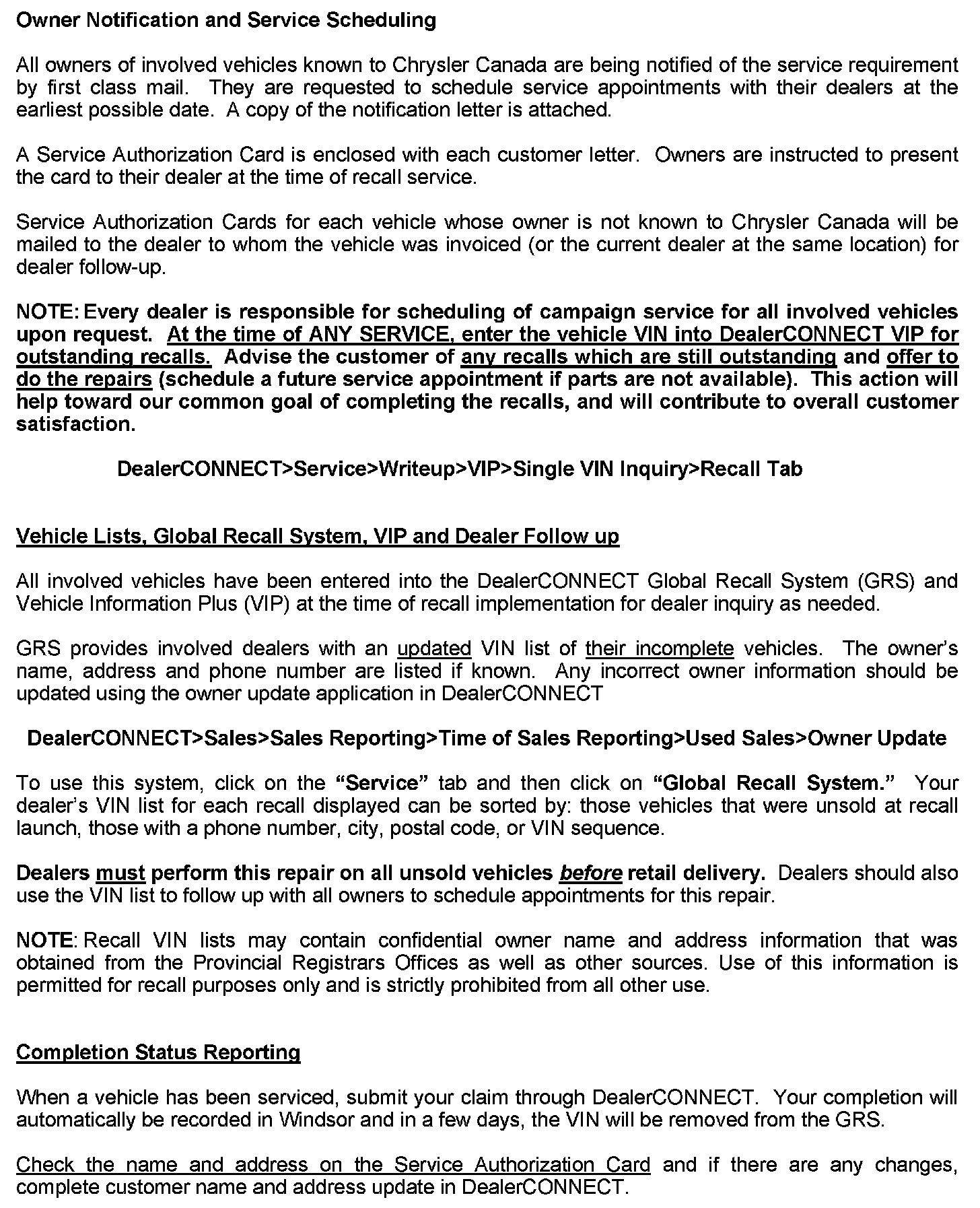

Owner Letter
