Pedal Positioning Switch: Diagrams

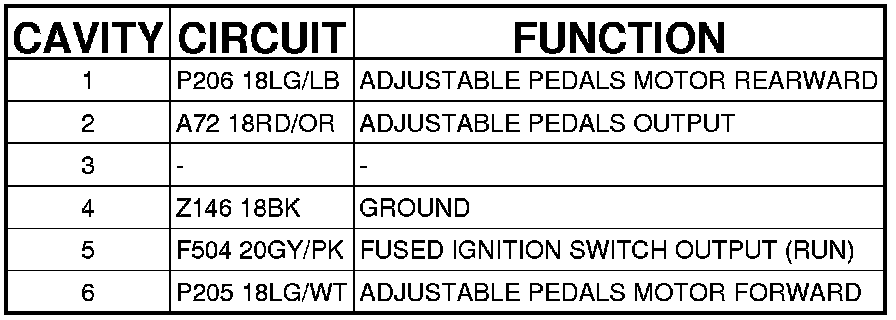

Connector (EXCEPT BASE) - (INSTRUMENT PANEL) 6 WAY

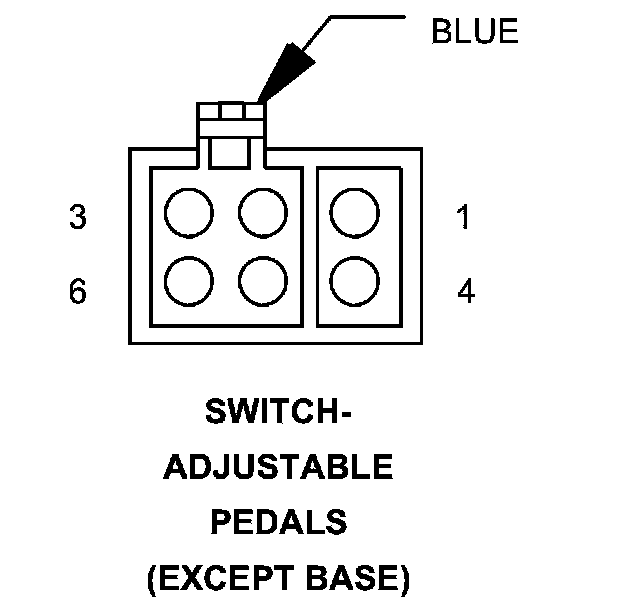

SWITCH-ADJUSTABLE PEDALS (EXCEPT BASE) - (INSTRUMENT PANEL) 6 WAY
