Knock Sensor 2 (5.7L) 2 Way
Knock Sensor 2 (5.7L) 2 Way

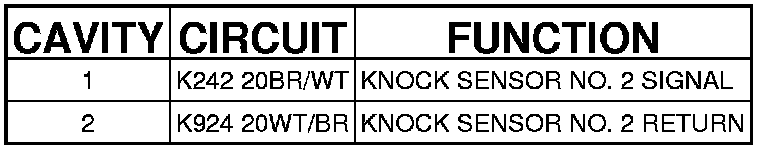

Connector (5.7L) - (ENGINE) 2 WAY

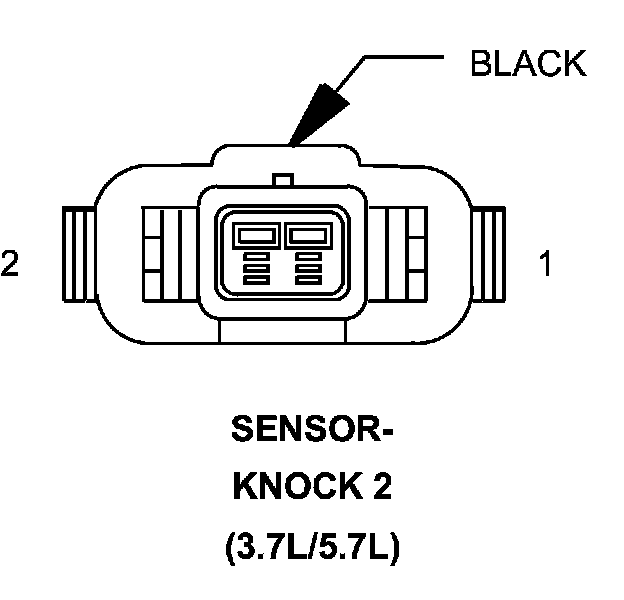

SENSOR-KNOCK 2 (5.7L) - (ENGINE) 2 WAY
